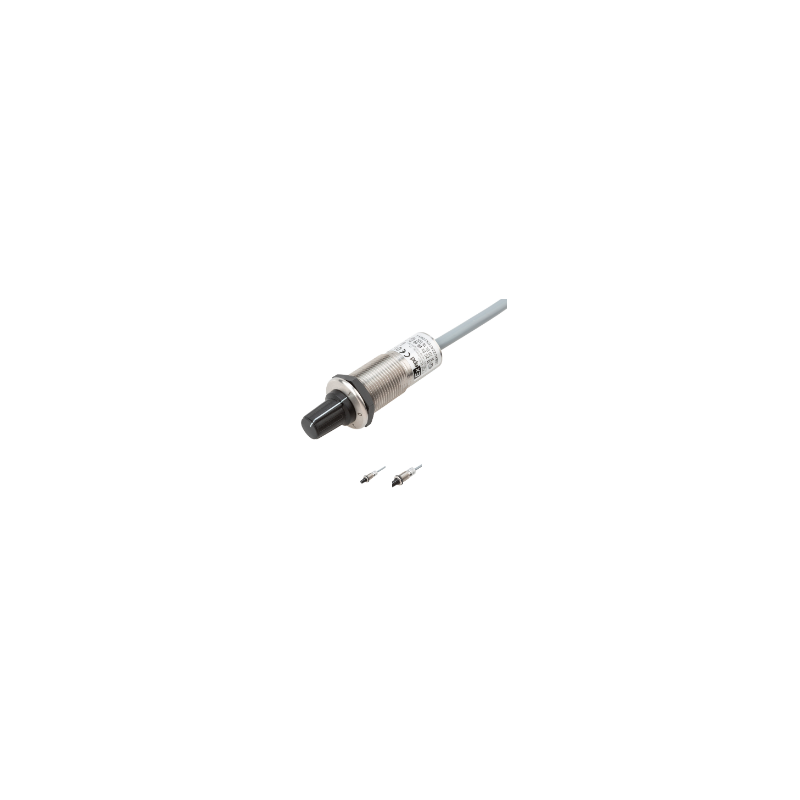

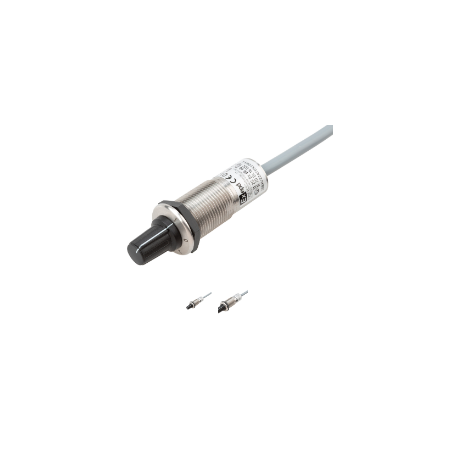

The AB1-W3 cam switch is used to control machines and systems in explosion-hazardous zones: Zones 1/2 and 21/22.
The product is available with cam and rotary switches – up to 10 switching positions.
The high IP protection rating and corrosion-resistant stainless steel housing ensure long service life, even in demanding environmental conditions. Thanks to its flat design and rounded edges, the switch has a limited surface area exposed to mechanical damage and dirt.
The elegantly engraved scale ensures durable markings and good visibility, even in difficult conditions.
CONNECT and ACT – thanks to its approval as a device, the switch can be mounted directly on the front of a machine in an Ex zone, without the need for additional certification. The shallow mounting depth allows for exceptionally compact and space-saving use.
The switch has also been tested for use in certified Ex e and Ex t control panels.
The scope of delivery does not include a plastic lock nut.
Category | Parameter | left;">Value |
---|---|---|
Explosion-proof | Protection type | II 2G Ex db eb IIC T6 Gb II 2D Ex tb IIIC T85 °C Db |
Certificate | IBExU 22 ATEX 1083 X | |
Ambient temperature | -20 °C ... +60 °C | |
Electrical data | Operating voltage | 24 VDC |
max. 150 mA | ||
Electrical Life | 2.5 x 10⁴ cycles (for 24 VDC, 150 mA) | |
Switch Types | 2-Position Switch (AB1-W3-21***) | 1 NO w each position Cable: 4G 0.5 mm², Ø 5.7 mm |
3-Position Switch (AB1-W3-21***) | 1 NO in each position Cable: 5G 0.5 mm², Ø 6.2 mm |
|
10-Position Rotary Switch (AB1-W3-11***) | 1 NO in each position Cable: 12G 0.5 mm², Ø 8.9 mm |
|
Mechanical data | Casing material | Stainless steel 1.4305 |
Padding | EPDM | |
Ingress Protection Rating | IP66 | |
Impact Resistance | 7 Nm | |
Mounting Hole Diameter | 22.0 ... 22.3 mm / M22 x 1.5 | |
Tightening torque | 8 Nm | |
Wall thickness | 1.0 ... 15.0 mm | |
Logistics data | Weight | 180 g (1.5 m cable, 2-position version) |
Customs code | 8536 5011 |
