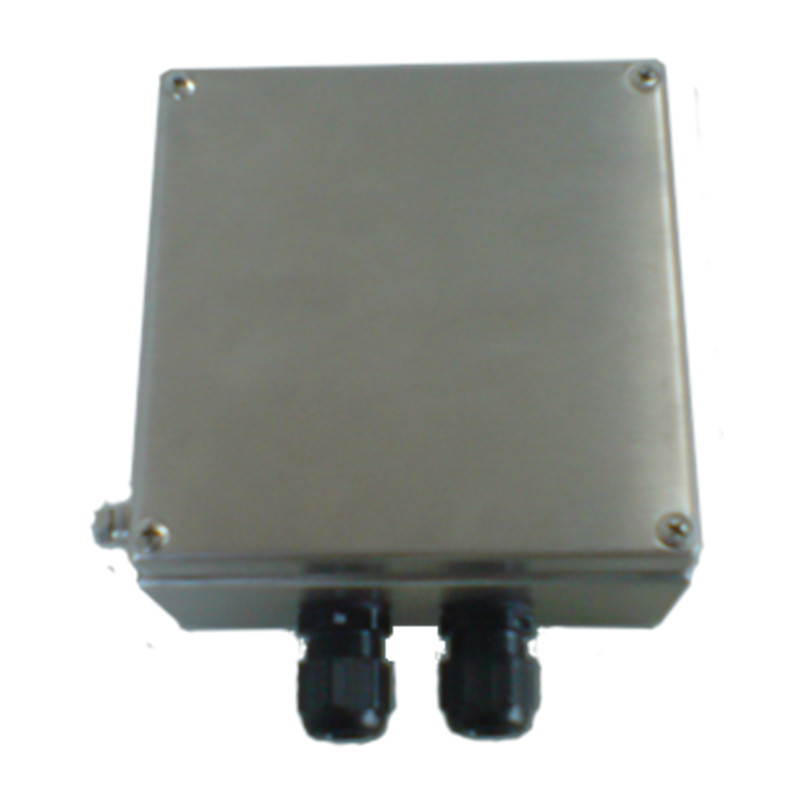

Terminal and switching boxes EX made of stainless steel to zones 1, 21
Terminal and switching boxes EX made of stainless steel to zones 1, 21

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: EXEPD

Terminal and switching boxes EX made of stainless steel to zones 1, 21

Maritime Industry
Ex-Proof Terminal and Connection Boxes Made of Stainless Steel, Zone 1, 21, Maritime Industry		 Chemical Industry
Ex-Proof Boxes Stainless Steel Clamping and Connecting Boxes, Zone 1.21 - Chemical Industry		 Mining Industry
Ex-Hazard Stainless Steel Clamping and Connecting Boxes, Zone 1.21 Mining Industry		 Equipment Manufacturing
Ex Stainless Steel Terminal and Junction Boxes, Zone 1, 21, Device Production

Ex stainless steel junction boxes are designed for use in very harsh conditions. High IP rating, temperature resistance, and high-quality workmanship guarantee customer satisfaction.
Such devices can be used in explosion hazard zones 1 and 21 in safe "Ex e" and intrinsically safe "Ex i" circuits.

Technical Data
Material: Stainless steel 1.4301 (V2A)
or 1.4404 (V4A)
Protection class: IP66
Operating temperature: -50°C - +40°C
Certificate: II 2G Ex e [ia] IIC T4/T6
II 2D Ex tD A21 IP65 T80 oC
Dimensions BxHxT [mm] 2/0 4/0 7/1 5/3
Max. number of connectors Max. number of stuffing boxes
35 mm2 70
mm2		 95
mm2		 120
mm2		 185
mm2		 300
mm2

M16x1.5

M20x1.5

M25x1.5

M32x1.5

M40x1.5

M50x1.5

M63x1.5
100x100x60 10 0 0 0 0 0 3/2 2/1 1/0 1/0 0/0 0/0 0/0
150x150x80 18 15 10 0 0 0 8/3 5/2 3/1 2/0 2/0 0/0 0/0
200x200x80 25 20 15 12 0 0 12/3 7/2 4/1 3/0 0/0 0/0
300x200x80 45 35 28 22 0 0 15/3 10/2 7/1 5/0 0/0 0/0
400x200x120 62 51 38 31 25 0 30/9 27/6 17/3 14/2 5/1 3/1
300x300x120 90 70 28 22 16 12 23/9 20/6 12/3 10/2 3/1 2/1

Dimensions

Ex junction boxes made of stainless steel dimensions

*Other dimensions available upon request.
