FF Series fan filters
  • FF Series fan filters

Photos are for informational purposes only. View product specification

Manufacturer: STEGO

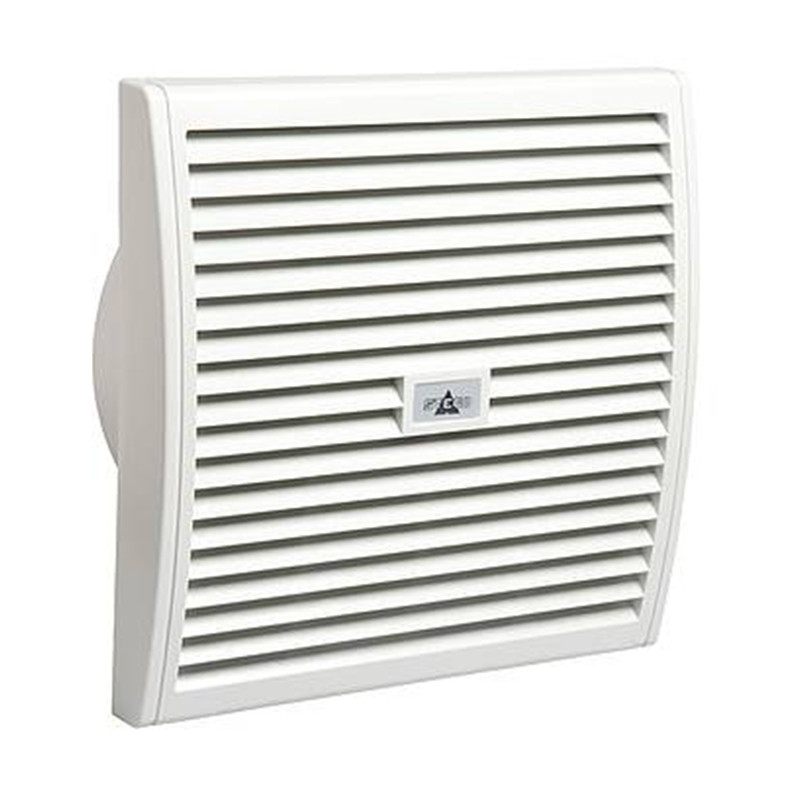

FF Series fan filters

FF Series fan filters

FF series with an easy-to-mount tool-less fixing system with clips, optimized for 1 to 2.5mm thick enclosures

ModelDimensions [mm].Cut-out
[mm]
Voltage
[V]
Frequency [Hz]Rated power
[W]
Max Air
Flow
[m³/h]**
Rated
Temp. Range
[ºC]
Approvals

FF08A115UN

106,5x106,5 91,5x91,5 115 Va.c. 50/60  9.0/7.0  12/15 -10 ~ +55 CE cURus cCSAus

FF08A115UNR

106,5x106,5 91,5x91,5 115 Va.c. 50/60  9.0/7.5  16/21 -10 ~ +55 CE cURus cCSAus

FF08A230UN

106,5x106,5 91,5x91,5 230 Va.c. 50/60  10/8.0  12/15 -10 ~ +55 CE cURus cCSAus

FF08A230UNR

106,5x106,5 91,5x91,5 230 Va.c. 50/60  10/8.0  16/21  -10 ~ +55 CE cURus cCSAus

FF08D24UN

106,5x106,5 91,5x91,5 24 Vd.c. 2.0 15 -10 ~ +55 CE cURus cCSAus

FF08D24UNR

106,5x106,5 91,5x91,5 24 Vd.c. 2.2 21 -10 ~ +55 CE cURus cCSAus

FF08GA115UF

106,5x106,5 92,5x92,5 115 Va.c. 50/60  10-gru 22/26  -10 ~ +55 CE cURus cCSAus

FF08GA115UNR

106,5x106,5 92,5x92,5 230 Va.c. 50/60  12/9.0  16/20  -10 ~ +55 CE cURus cCSAus

FF08GA230UF

106,5x106,5 92,5x92,5 230 Va.c. 50/60  11-gru 22/26  -10 ~ +55 CE cURus cCSAus

FF08GA230UNR

106,5x106,5 92,5x92,5 230 Va.c. 50/60  10-gru 16/20  -10 ~ +55 CE cURus cCSAus

FF08GD24UN

106,5x106,5 92,5x92,5 24 Vd.c. 15 50 -10 ~ +55 CE cURus cCSAus

FF08GD24UNR

106,5x106,5 92,5x92,5 24 Vd.c. 17 60 -10 ~ +55 CE cURus cCSAus

FF08U

106,5x106,5 91,5x91,5         -10 ~ +60 CE cURus cCSAus

FF12A115UF

150x150 125x125 115 Va.c. 50/60  16/15  45/50  -10 ~ +55 CE cURus cCSAus

FF12A115UFR

150x150 125x125 115 Va.c. 50/60  16/15  47/52  -10 ~ +55 CE cURus cCSAus

FF12A115UN

150x150 125x125 115 Va.c. 50/60  19/17  67/79  -10 ~ +55 CE cURus cCSAus

FF12A115UNR

150x150 125x125 115 Va.c. 50/60  19/17  60/70  -10 ~ +55 CE cURus cCSAus

FF12A230UF

150x150 125x125 230 Va.c. 50/60  18/17  45/50  -10 ~ +55 CE cURus cCSAus

FF12A230UFR

150x150 125x125 230 Va.c. 50/60  18/17  47/52  -10 ~ +55 CE cURus cCSAus

FF12A230UN

150x150 125x125 230 Va.c. 50/60  18/16  67/79  -10 ~ +55 CE cURus cCSAus

FF12A230UNR

150x150 125x125 230 Va.c. 50/60  18/16  60/70  -10 ~ +55 CE cURus cCSAus

FF12A24UF

150x150 125x125 24 Va.c. 50/60  15/15  39/44  -10 ~ +60 CE

FF12A24UFR

150x150 125x125 24 Va.c. 50/60  15/15  50/52  -10 ~ +60 CE

FF12D24UN

150x150 125x125 24 Vd.c. 7.4 47 -10 ~ +55 CE UR cCSAus

FF12D24UNR

150x150 125x125 24 Vd.c. 7.4 64 -10 ~ +55 CE UR cCSAus

FF12D48UN

150x150 125x125 48 Vd.c. 8.6 47 -10 ~ +55 CE UR cCSAus

FF12D48UNR

150x150 125x125 48 Vd.c. 8.6 64 -10 ~ +55 CE UR cCSAus

FF12U

150x150 125x125         -10 ~ +60 CE cURus cCSAus

FF13PA115UF

203,9x203,9 177x177 115 Va.c. 50/60  19/18  100/110  -10 ~ +55 CE cURus cCSAus

FF13PA115UFR

203,9x203,9 177x177 115 Va.c. 50/60  18/18  100/110  -10 ~ +55 CE cURus cCSAus

FF13PA115UN

203,9x203,9 177x177 115 Va.c. 50/60  16/15  110/130  -10 ~ +55 CE cURus cCSAus

FF13PA115UNR

203,9x203,9 177x177 115 Va.c. 50/60  20/18  110/135  -10 ~ +55 CE cURus cCSAus

FF13PA230UF

203,9x203,9 177x177 230 Va.c. 50/60  18/18  100/110  -10 ~ +55 CE cURus cCSAus

FF13PA230UFR

203,9x203,9 177x177 230 Va.c. 50/60  18/18  100/110  -10 ~ +55 CE cURus cCSAus

FF13PA230UN

203,9x203,9 177x177 230 Va.c. 50/60  19/17  110/130  -10 ~ +55 CE cURus cCSAus

FF13PA230UNR

203,9x203,9 177x177 230 Va.c. 50/60  19/18  110/135  -10 ~ +55 CE cURus cCSAus

FF13PD24UN

203,9x203,9 177x177 24 Vd.c. 8.2 100 -10 ~ +55 CE UR cCSAus

FF13PD24UNR

203,9x203,9 177x177 24 Vd.c. 8.5 120 -10 ~ +55 CE UR cCSAus

FF13U

203,9x203,9 177x177         -10 ~ +60 CE cURus cCSAus

FF15A115UF

250x250 223x223 115 Va.c. 50/60  31/31  230/270  -10 ~ +55 CE cURus cCSAus

FF15A115UFR

250x250 223x223 115 Va.c. 50/60  31/26  245/290  -10 ~ +55 CE cURus cCSAus

FF15A115UN

250x250 223x223 115 Va.c. 50/60  27/32  225/255  -10 ~ +50 CE

FF15A115UNR

250x250 223x223 115 Va.c. 50/60  27/32  240/275  -10 ~ +50 CE

FF15A115UN2

250x250 223x223 115 Va.c. 50/60  39/41  230/272  -10 ~ +55 CE cURus cCSAus

FF15A115UNR2

250x250 223x223 115 Va.c. 50/60  39/41  238/283  -10 ~ +55 CE cURus cCSAus

FF15A230UF

250x250 223x223 230 Va.c. 50/60  32/36  230/270  -10 ~ +55 CE cURus cCSAus

FF15A230UFR

250x250 223x223 230 Va.c. 50/60  32/36  245/290  -10 ~ +55 CE cURus cCSAus

FF15A230UN

250x250 223x223 230 Va.c. 50/60 32/38 225/255 -10 ~ +50 CE

FF15A230UNR

250x250 223x223 230 Va.c. 50/60  32/38  240/275  -10 ~ +50 CE

FF15D24UF

250x250 223x223 24 Vd.c. 31 280 -10 ~ +55 CE cURus cCSAus

FF15D24UFR

250x250 223x223 24 Vd.c. 31 300 -10 ~ +55 CE cURus cCSAus

FF15D24UN

250x250 223x223 24 Vd.c. 17 225 -10 ~ +55 CE UR cCSAus

FF15D24UNR

250x250 223x223 24 Vd.c. 17 255 -10 ~ +55 CE UR cCSAus

FF15D48UF

250x250 223x223 48 Vd.c. 62 280 -10 ~ +70 CE

FF15D48UFR

250x250 223x223 48 Vd.c. 62 300 -10 ~ +70 CE

FF15D48UN

250x250 223x223 48 Vd.c. 16 225 -10 ~ +55 CE UR cCSAus

FF15D48UNR

250x250 223x223 48 Vd.c. 16 255 -10 ~ +55 CE UR cCSAus

FF15MA115UF

250x250 223x223 115 Va.c. 50/60  16/15  130/145  -10 ~ +70 CE

FF15MA115UFR

250x250 223x223 115 Va.c. 50/60  16/15  140/155  -10 ~ +70 CE

FF15MA230UF

250x250 223x223 230 Va.c. 50/60  21/20  130/145  -10 ~ +70 CE

FF15MA230UFR

250x250 223x223 230 Va.c. 50/60  21/20  140/155  -10 ~ +70 CE

FF15PA115UF

250x250 223x223 115 Va.c. 50/60  17/16  105/120  -10 ~ +55 CE cURus cCSAus

FF15PA115UFR

250x250 223x223 115 Va.c. 50/60  17/16  110/120  -10 ~ +55 CE cURus cCSAus

FF15PA115UN

250x250 223x223 115 Va.c. 50/60  20/19  125/145  -10 ~ +55 CE cURus cCSAus

FF15PA115UNR

250x250 223x223 115 Va.c. 50/60  20/19  130/150  -10 ~ +55 CE cURus cCSAus

FF15PA230UF

250x250 223x223 230 Va.c. 50/60  18/17  105/120  -10 ~ +55 CE cURus cCSAus

FF15PA230UFR

250x250 223x223 230 Va.c. 50/60  18/17  110/120  -10 ~ +55 CE cURus cCSAus

FF15PA230UN

250x250 223x223 230 Va.c. 50/60  19/17  125/145  -10 ~ +55 CE cURus cCSAus

FF15PA230UNR

250x250 223x223 230 Va.c. 50/60  19/18  130/150  -10 ~ +55 CE cURus cCSAus

FF15PD24UN

250x250 223x223 24 Vd.c. 7.6 140 -10 ~ +55 CE UR cCSAus

FF15PD24UNR

250x250 223x223 24 Vd.c. 7.6 150 -10 ~ +55 CE UR cCSAus

FF15PD48UN

250x250 223x223 48 Vd.c. 8.6 140 -10 ~ +55 CE UR cCSAus

FF15PD48UNR

250x250 223x223 48 Vd.c. 8.6 150 -10 ~ +55 CE UR cCSAus

FF15U

250x250 223x223         -10 ~ +60 CE cURus cCSAus

FF20A115UE

325x325 291x291 115 Va.c. 50/60  60/74  520/580  -10 ~ +70 CE

FF20A115UE1

325x325 291x291 115 Va.c. 50/60  74/83  520/580  -10 ~ +55 CE cURus cCSAus

FF20A115UER

325x325 291x291 115 Va.c. 50/60  64/73  550/610  -10 ~ +70 CE

FF20A115UER1

325x325 291x291 115 Va.c. 50/60  74/83  550/610  -10 ~ +55 CE cURus cCSAus

FF20A230UE

325x325 291x291 230 Va.c. 50/60  73/87  520/580  -10 ~ +70 CE

FF20A230UE1

325x325 291x291 230 Va.c. 50/60  70/85  520/580  -10 ~ +55 CE cURus cCSAus

FF20A230UER

325x325 291x291 230 Va.c. 50/60  74/86  550/610  -10 ~ +70 CE

FF20A230UER1

325x325 291x291 230 Va.c. 50/60  70/85  550/610  -10 ~ +55 CE cURus cCSAus

FF20A400TUE

325x325 291x291 400 3 ~  50/60  169/n.a. 540/n.a. -10 ~ +70 CE

FF20GEA400TUE

325x325 291x291 400 3 ~  50/60  160/n.a. 515/n.a. -10 ~ +55 CE

FF20GA115UE

325x232 291x291 115 Va.c. 50/60  165/215  730/820  -10 ~ +60 CE

FF20GA115UE1

325x232 291x291 115 Va.c. 50/60  165/215  670/760  -10 ~ +55 CE cURus cCSAus

FF20GA115UER

325x232 291x291 115 Va.c. 50/60  175/225  740/840  -10 ~ +60 CE

FF20GA115UER1

325x232 291x291 115 Va.c. 50/60  175/225  740/840  -10 ~ +55 CE cURus cCSAus

FF20GA230UE

325x232 291x291 230 Va.c. 50/60  150/190  730/820  -10 ~ +60 CE

FF20GA230UE1

325x232 291x291 230 Va.c. 50/60  155/195  670/760  -10 ~ +55 CE cURus cCSAus

FF20GA230UER

325x232 291x291 230 Va.c. 50/60  165/205  720/820  -10 ~ +60 CE

FF20GA230UER1

325x232 291x291 230 Va.c. 50/60  165/205  720/820  -10 ~ +55 CE cURus cCSAus

FF20GA115UEA

325x232 291x291 115 Va.c. 50/60  170/220  820/930  -10 ~ +60 CE

FF20GA230UEA

325x232 291x291 230 Va.c. 50/60  155/190  820/930  -10 ~ +60 CE

FF20GA115UEA1

325x232 291x291 115 Va.c. 50/60  124/146  825/945  -10 ~ +55 CE cURus cCSAus

FF20GA230UEA1

325x232 291x291 230 Va.c. 50/60  120/158  825/945  -10 ~ +55
