Manufacturer: STEGO

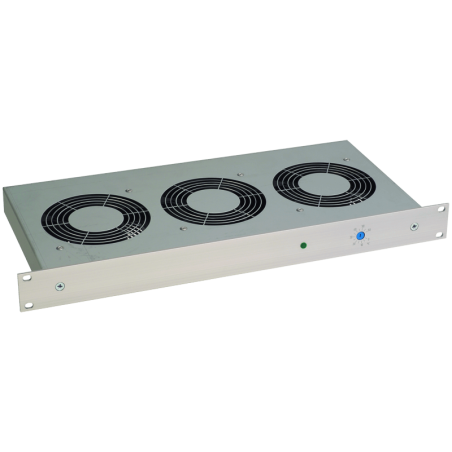

LE 019 - Ventilation Panel - 01930.0-00

  • 01930.0-00
  • Supply voltage 208 V - 253 V AC
  • Dimensions 43,6 x 483 x 208 mm
  • Housing material Steel sheet, galvanized
  • Protection rating IP20
  • Air flow 486 m³/h
  • Working temperature -10 ... 60 °C

Compact, efficient ventilation panel for fan circulation in 19-inch electronics cases for targeted heat dissipation from components. Improves self-convection of the case surface and prevents the formation of heat pockets. Also available with a built-in thermostat.

  • High airflow
  • Ball-bearing fans for long life
  • Supplied ready to plug in
  • Visual indicator
