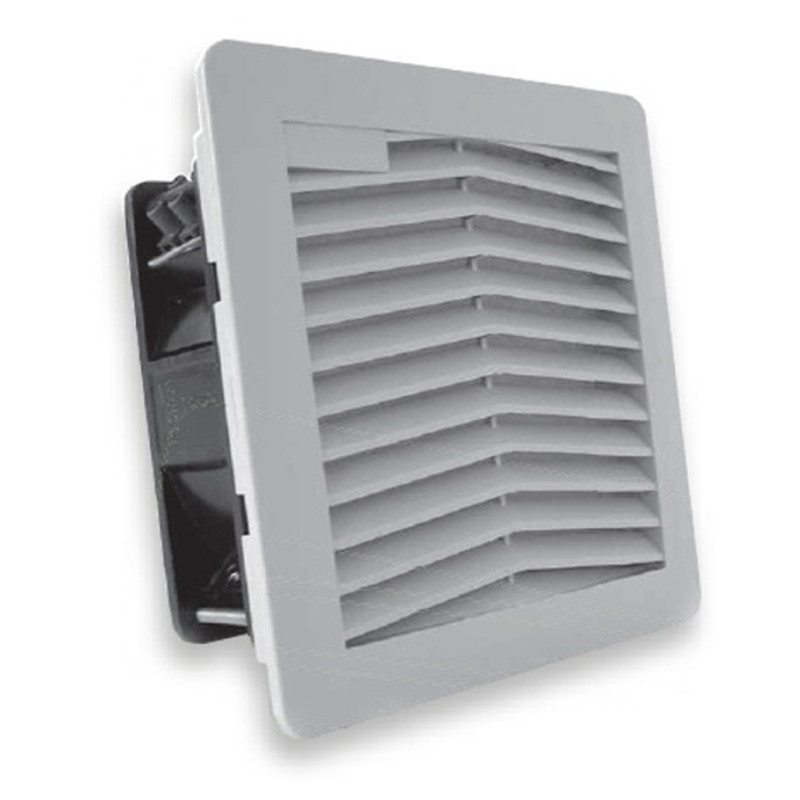

Filters and filter - ventilation sets for cabinets - FPF series
  • Filters and filter - ventilation sets for cabinets - FPF series

Photos are for informational purposes only. View product specification

Manufacturer: FANDIS

Filters and filter - ventilation sets for cabinets - FPF series

attention
* air flow direction
S - suction from the outside to the inside of the cabinet
B - from inside the cabinet

TypeDirection
flow
air*
Supply voltage
[VAC]
Degree
protection
[Ip]
Rated
electricity
[mA]
Power
[W]
Level
noise
[dB]
Performance
[m3/h]
FPF08 KR 230BE S 230 54 70/55 10/8 40/44 23/30
FPF08KR230B-ER B 230 54 70/55 10/8 40/44 23/30
FPF08KR115BE S 115 54 140/110 9/7 40/44 23/30
FPF08KR115B-ER B 115 54 140/110 9/7 40/44 23/30
FPF12KR230BE S 230 54 90/80 20/19 43/48 57/61
FPF12KR230BE-R B 230 54 90/80 20/19 43/48 57/61
FPF12KR115BE S 115 54 170/160 20/18 43/48 57/61
FPF12KR115BE-R B 115 54 170/160 20/18 43/48 57/61
FPF13KPR230BE B 230 54 90/80 20/19 43/48 90/110
FPF13KPR230BE-R B 230 54 90/80 20/19 43/48 90/110
FPF13KPR115BE S 115 54 170/160 20/18 43/48 90/110
FPF13KPR115BE-R B 115 54 170/160 20/18 43/48 90/110
FPF13KR230BE-R B 230 54 165/135 23/21 41/43 120/135
FPF13KR230BE S 230 54 165/135 23/21 41/43 120/135
FPF13KR115BE S 115 54 320/270 23/21 41/43 120/135
FPF13KR115BE-R B 115 54 320/270 23/21 41/43 120/135
FPF15KMR230BE S 230 54 165/135 23/21 41/43 130/150
FPF15KMR230BE-R B 230 54 165/135 23/21 41/43 130/150
FPF15KMR115BE S 115 54 320/270 23/21 41/43 130/150
FPF15KMR115BE-R B 115 54 320/270 23/21 41/43 130/150
FPF15KPR230BE S 230 54 90/80 20/19 43/48 100/115
FPF15KPR230BE-R B 230 54 90/80 20/19 43/48 100/115
FPF15KPR115BE S 115 54 170/160 20/18 43/48 100/115
FPF15KPR115BE-R B 115 54 170/160 20/18 43/48 100/115
FPF15KR230BE S 230 54 120/120 29/29 50/55 240/270
FPF15KR230BE-R B 230 54 120/120 29/29 50/55 240/270
FPF15KPR115BE S 115 54 250/250 30/30 50/55 240/270
FPF15KPR115BE-R B 115 54 250/250 30/30 50/55 240/270
FPF20KGR230BE S 230 54 540 118 71/75 650
FPF20 KGR 230BE-R B 230 54 540 118 71/75 650
FPF20 KGR 115BE S 115 54 950 110 71/75 650
FPF20 KGR 115BE-R B 115 54 950 110 71/75 650
FPF20KGR400TB S 380 54 220 105 71/75 680
FPF20KGR400TB-R B 380 54 220 105 71/75 680
FPF20KR230BE S 230 54 320 67 65/69 500
FPF20KR230BE-R B 230 54 320 67 65/69 500
FPF20KR115BE S 115 54 820 71 65/69 500
FPF20KR115BE-R B 115 54 820 71 65/69 500
FPF20 KR 400TB S 380 54 210 69 65/69 520
FPF15KR400TB-R B 380 54 210 69 65/69 520
FPF08KRG-100 Filter without fan 105x105 mm
FPF12KRG-100 Filter without fan 105x150 mm
FPF13KRG-100 Filter without fan 204x204 mm
FPF15KRG-100 Filter without fan 250x250 mm
FPF20KRG-100 Filter without fan 325x325 mm
