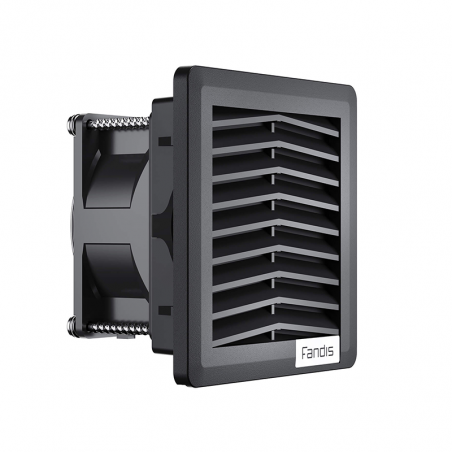

FF Series-fans with filters with the degree of Charter NEMA 3R Outdoor
FF Series-fans with filters with the degree of Charter NEMA 3R Outdoor

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FANDIS

FF Series-fans with filters with the degree of Charter NEMA 3R Outdoor

  • Free-tool clip mounting system
  • Plate thickness: FF08 from 1 to 2mm; FF12, FF13 from 1.3 to 3.2mm; FF15, FF20 from 1.3 to 3.7mm (up to 4mm with cut-out max tolerance)
  • Quick electrical connection by screwless terminal block
  • Standard color RAL 9005
  • Standard protection ratings: Type 3R and IP55 (IP54 for FF08 series). Optional versions: IP54
  • Frequency: 50/60 Hz
  • UV resistant
  • Plastic construction against atmospheric deterioration, ideal for outdoor applications
  • Other voltages available on request
Model Dimensions HxWxD Cut-Out Rated Voltage Rated power (50/60Hz) Max Air flow (50/60Hz) Static Pressure (50/60Hz) Approvals
  mm mm V W m3/h Pa
FF08A115NN3 107x107x67 91.5X91.5 115 V a.c. 9.0/7.0 12/15 23/33 CE; cURus; cULus;
FF08A230NN3 107x107x67 91.5X91.5 230 V a.c. 10/8.0 12/15 23/33 CE; cURus; cULus;
FF08D12NN3 107x107x54 91.5X91.5 12 V d.c. 2.0 16 28 CE; cURus; cULus;
FF08D24NN3 107x107x54 91.5X91.5 24 V d.c. 2.0 16 28 CE; cURus; cULus;
FF08GA115NF3 107x107x80 92.5X92.5 115 V a.c. 12/10 21/26 40/55 CE; cURus; cULus;
FF08GA230NF3 107x107x80 92.5X92.5 230 V a.c. 12/11 21/26 40/55 CE; cURus; cULus;
FF08GD24NN3 107x107x77 92.5X92.5 24 V d.c. 15 50 160 CE; cURus; cULus;
FF12A115NF53 150x150x73 125X125 115 V a.c. 16/15 33/39 49/55 CE; cURus; cULus;
FF12A115NN53 150x150x73 125X125 115 V a.c. 19/17 50/59 67/82 CE; cURus; cULus;
FF12A230NF53 150x150x73 125X125 230 V a.c. 18/17 33/39 49/55 CE; cURus; cULus;
FF12A230NN53 150x150x73 125X125 230 V a.c. 18/16 50/59 67/82 CE; cURus; cULus;
FF12D24NN53 150x150x73 125X125 24 V d.c. 7.4 35 53 CE; UR; cULus;
FF12D48NN53 150x150x73 125X125 48 V d.c. 8.6 35 53 CE; UR; cULus;
FF13PA115NF53 204x204x96 177X177 115 V a.c. 18/18 75/87 50/50 CE; cURus; cULus;
FF13PA115NN53 204x204x96 177X177 115 V a.c. 16/15 90/110 75/95 CE; cURus; cULus;
FF13PA230NF53 204x204x96 177X177 230 V a.c. 18/18 75/87 50/50 CE; cURus; cULus;
FF13PA230NN53 204x204x96 177X177 230 V a.c. 19/17 90/110 75/95 CE; cURus; cULus;
FF13PD24NN53 204x204x96 177X177 24 V d.c. 8.2 85 52 CE; UR; cULus;
FF15A115NF53 250x250x124 223X223 115 V a.c. 31/31 160/195 97/130 CE; cURus; cULus;
FF15A115NN532 250x250x112 223X223 115 V a.c. 39/41 187/225 94/121 CE; cURus; cULus;
FF15A230NF53 250x250x124 223X223 230 V a.c. 32/36 160/195 97/130 CE; cURus; cULus;
FF15A230NN532 250x250x112 223X223 230 V a.c. 42/45 187/225 105/139 CE; cURus; cULus;
FF15D24NF53 250x250x125 223X223 24 V d.c. 31 230 150 CE; cURus; cULus;
FF15D24NN53 250x250x125 223X223 24 V d.c. 17 205 97 CE; UR; cULus;
FF15PA115NF53 250x250x112 223X223 115 V a.c. 17/16 96/110 49/52 CE; cURus; cULus;
FF15PA230NF53 250x250x112 223X223 230 V a.c. 18/17 96/110 49/52 CE; cURus; cULus;
FF15PD24NN53 250x250x112 223X223 24 V d.c. 7.6 110 50 CE; UR; cULus;
FF15PD48NN53 250x250x112 223X223 48 V d.c. 8.6 110 50 CE; UR; cULus;
FF20A115NE531 325x325x160 291X291 115 V a.c. 74/83 338/378 98/107 CE; cURus; cULus;
FF20A230NE531 325x325x160 291X291 230 V a.c. 70/85 360/400 112/126 CE; cURus; cULus;
FF20GA115NE31 325x325x159 291X291 115 V a.c. 110/156 675/738 183/170 CE; cURus; cULus;
FF20GA230NE31 325x325x159 291X291 230 V a.c. 120/158 680/765 200/210 CE; cURus; cULus;
