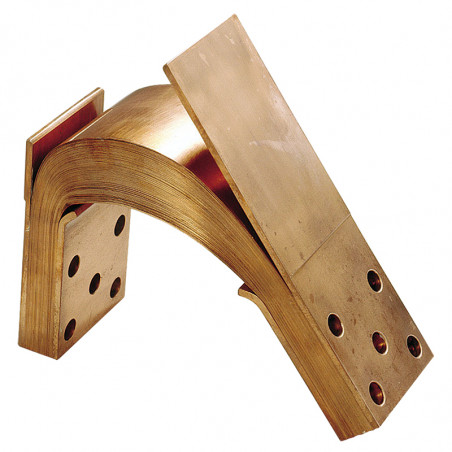

Flexible multilayer busbars

Construction:
Connections consists of tapes put out together. Tips are made according to welding process with press.
The same process allows to strengthen material, which is used for tips. There is no contact resistance between tapes.

Ranges:
-Standard width:
20mm - 35mm - 48mm - 58mm - 80mm - 100mm - 120mm - 150mm - 200mm (other dimensions for request),
-tape thickness: 0,1 mm, 0,2mm, 0,3mm,
-thickness of parallel connected tapes.

Options
-silve
