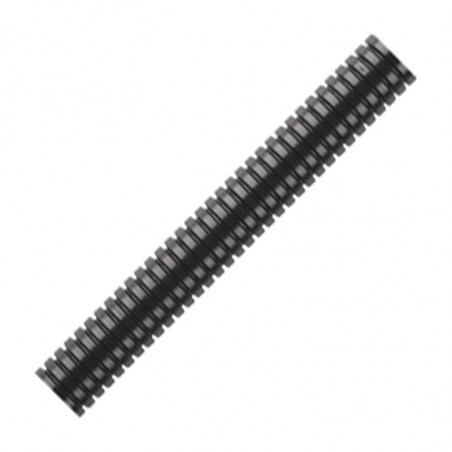

FPAH- Non-Metallic Conduits – Heavy weight nylon (flame retardant PA6) corrugated flexible conduit
  • FPAH- Non-Metallic Conduits – Heavy weight nylon (flame retardant PA6) corrugated flexible conduit

Photos are for informational purposes only. View product specification

Manufacturer: FLEXICON

FPAH- Non-Metallic Conduits – Heavy weight nylon (flame retardant PA6) corrugated flexible conduit

FPAH- Non-Metallic Conduits – Heavy weight nylon (flame retardant PA6) corrugated flexible conduit

Peszel FPAH – ciężki elastyczny karbowany peszel z nylonu (PA6)

Properties:
Material; Nylon PA6 (flame re-tardant)
Colour: Black
Fire Performance: Highly flame retardant, halogen, sulphur and phosphorous free
Temperature Performance:
Static -40OC +120OC
Dynamic -20OC +100OC
IP Rating:
IP66 with FPA fittings
IP66+67+68+69K with FPAX fittings
Compression Strength: 120kg/100mm
Pull-off (Tensile) strength 70 kg z akcesoriami FPA i FPAX
resistant UV (UL No. E246572)

Typical Applications

Peszel FPAH – ciężki elastyczny karbowany peszel z nylonu (PA6) zastosowanie maszyn Machinery and OEM’s Peszel FPAH – ciężki elastyczny karbowany peszel z nylonu (PA6) konstrukcje zastosowanie Construction
Peszel FPAH – ciężki elastyczny karbowany peszel z nylonu (PA6) zastosowanie kolejnictwoa Rail Peszel FPAH – ciężki elastyczny karbowany peszel z nylonu (PA6) zastosowanie wojsko Defence

Compliance, Approvals [&] Accreditation;
Peszel FPAH – ciężki elastyczny karbowany peszel z nylonu (PA6) certyfikaty
EN 61386 Classification Available on reques

File No. E229161


Nominal SizePitch
F= fine
C= coarse
Part NoReel Length
[m]
OD
[mm]
Min ID
[mm]
Min inside Bend
radius R
[mm]
Compression
Strength
kg/100mm
Weight
[g/m]
13 F

FPAH13

50 13.0 9.0 35 80 37
16 F

FPAH16

50 15.8 11.5 45 80 48
21 C

FPAH21

50 21.2 15.5 55 120 80
28 C

FPAH28

50 28.5 21.3 60 150 130
34 C

FPAH34

25 34.5 26.9 70 110 170
42 C

FPAH42

25 42.5 34.6 80 110 200
54 C

FPAH54

25 54.5 46.0 90 110 270
