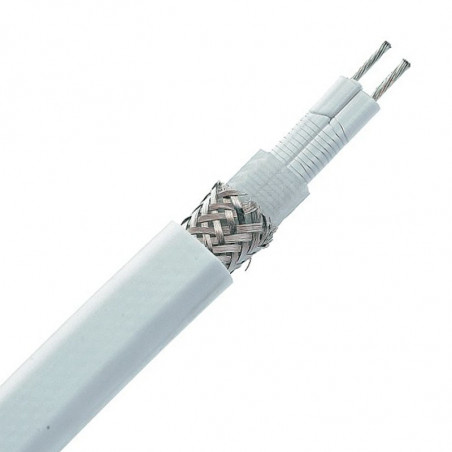

High-energy cables with a fixed power series FTS3 / IS
High-energy cables with a fixed power series FTS3 / IS

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Flexelec

High-energy cables with a fixed power series FTS3 / IS

Applcations

FTS3/IS cables are designed for protecting railway lines, points and power rails from freezing or for keeping them clear of snow. To ensure that these heating elements enjoy a long service life, we recommend using a control device.


Characteristics
  • Welded contact points.
  • Can be cut to length on site.
  • Extremely simple termination.
  • Cold tail incorporated: no extra connection necessary.
  • Available as 100 W/m.
  • Power supply: 230 V.
  • Tinned copper braid and silicon elastomer outer sheath.


  FST3/IS
Heating wire Nickel-Copper or Nickel-Chrom
Dimensions 9 x 16 mm
Power 100 W/m
Isolation Elastomer silikonowy
Permissible surfac temperature from - 70°C to + 200°C
Max. circuit length 40 m
Distance between 2
consecutive contact points		 0.35 m

Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

Applcations

FTS3/IS cables are designed for protecting railway lines, points and power rails from freezing or for keeping them clear of snow. To ensure that these heating elements enjoy a long service life, we recommend using a control device.


Characteristics
  • Welded contact points.
  • Can be cut to length on site.
  • Extremely simple termination.
  • Cold tail incorporated: no extra connection necessary.
  • Available as 100 W/m.
  • Power supply: 230 V.
  • Tinned copper braid and silicon elastomer outer sheath.


  FST3/IS
Heating wire Nickel-Copper or Nickel-Chrom
Dimensions 9 x 16 mm
Power 100 W/m
Isolation Elastomer silikonowy
Permissible surfac temperature from - 70°C to + 200°C
Max. circuit length 40 m
Distance between 2
consecutive contact points		 0.35 m

Less
Read more
