Manufacturer: STEGO

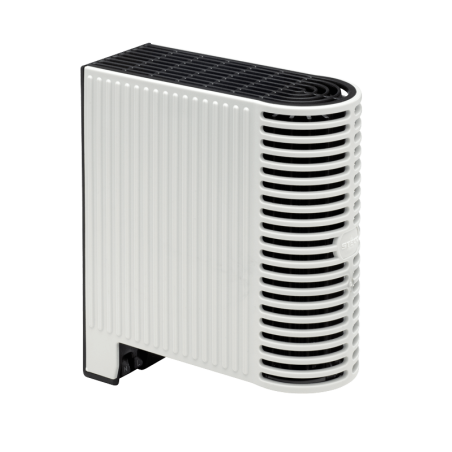

06504.0-00 semiconductor heater type LT 065

  • 06504.0-00
  • Product Type Grzałka
  • Supply voltage 120 V - 240 V AC
  • Dimensions 161 x 57 x 140 mm
  • Housing material Tworzywo sztuczne zgodne z UL94 V-0, czarno-białe
  • Protection rating IP20
  • Heating power 150 W
  • Electrical hookup 2 x złącza sprężynowe-naciskowe dla przewodów wielodrutowych 0,5 - 1,5 mm² (z izolowaną końcówką) i przewodów drutowych 0,5 - 2,5 mm²
  • Weight 750 g

Compact loop heater for heating enclosures containing electrical and electronic components. Good self-convection thanks to high hot air flow. The safe-to-touch plastic housing minimizes surface temperatures to 80°C. Also available with a thermostat (LTF 065 series).

  • Shock and vibration resistant according to the railway standard DIN EN IEC 61373:2011-04, Cat. 1 B
  • Quick installation thanks to clip mounting and spring-loaded connection
  • Low surface temperature
  • Protective insulation (plastic housing)
  • Wide voltage range
  • Loop heating body for optimal temperature distribution
