Manufacturer: STEGO

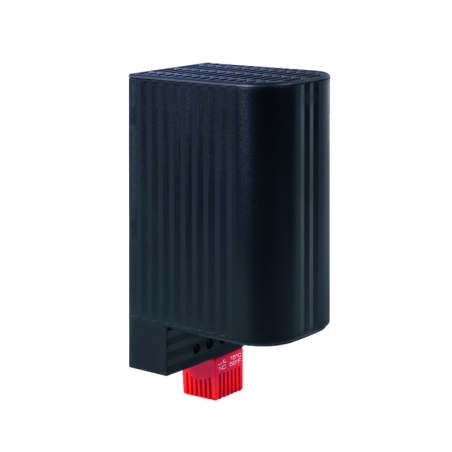

CSF 060 - Heater for electrical enclosures - 06022.0-00

  • 06022.0-00
  • Product Type Grzałka z Wentylatorem
  • Supply voltage 230 V AC
  • Dimensions 90 x 85 x 113 mm
  • Housing material Tworzywo sztuczne zgodne z UL94 V-0, czarne
  • Protection rating IP20
  • Heating power 400 W
  • Electrical hookup Zacisk 2-biegunowy 2,5 mm², maks. moment dokręcenia 0,8 Nm
  • Weight 500 g

The compact PTC electrical enclosure heater with integrated fixed thermostat provides reliable protection against condensation in control cabinets and enclosures. Practical: The integrated fixed thermostat eliminates the need for an external thermostat. Two proven presets are available (off and on temperature: +15°C and 5°C; +25°C and 15°C).

  • With built-in fixed thermostat
  • Safe to touch, low surface temperature
  • Quick mounting on a 35 mm DIN rail
  • This electrical enclosure heater is designed for continuous operation
  • heating element
