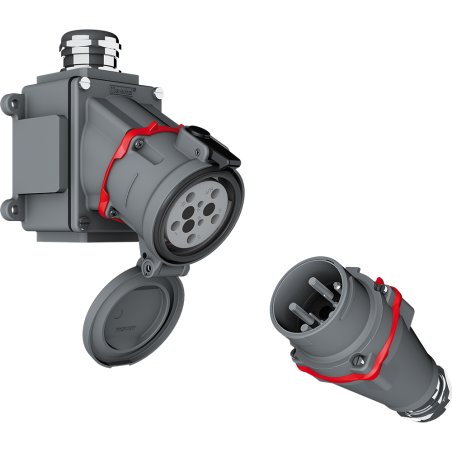

DS F400 Plug and Socket (125 A, 690 V) – Fire Resistance 400°C/2H

The DS F400 plug and socket with integrated connector is a compact industrial solution designed for maximum safety. It is particularly suitable for applications such as smoke accelerators (smoke extraction fans) that must operate at temperatures up to 400°C for 2 hours. The connector offers proximity disconnection, ensuring the highest level of safety during maintenance.

Key Features and Technical Parameters

The DS F400 connector combines exceptional thermal resistance with disconnect functionality, meeting the stringent requirements of fire safety systems and heavy industry.

• Fire resistance: fire-resistant socket for accelerators with a classification of 400 °C/2 H.
• Built-in breaking capacity AC-22 and AC-23.
• Automatic IP rating: IP66/IP67.
• Metal casing, mechanical resistance IK09.
• Electrical parameters: 125 A, 690 V (data from the product specification).

Standard compliance and fire safety

This connector meets both standard European electrical standards and specific requirements for the safety of machines and smoke extraction systems.

• Compliance with the European Low Voltage Directive (LVD) and RoHS (CE marking) and the European REACH regulation.
• Compliance with the IEC/EN 60947-3 standard (defining the breaking capacity for the AC-22 and AC-23 utilization categories).
• Ensures compliance of electrical machines with the European Directive Machinery in the field of disconnectors.
• Ensures compliance of electrical machines with the standard EN 60204-1: Safety of machinery - Electrical equipment of machines.
• Ensures compliance of electrical machines with the standard EN ISO 14118: Safety of machinery - Prevention of unexpected start-up.
• Ensures compliance of smoke accelerators with the F400 classification of the standard EN 12101-3 (400 °C/2 H).
