Manufacturer: MARECHAL ELECTRIC

High current connector - decontactor 50A 500V MAR-DS7C3

  • MAR-DS7C3

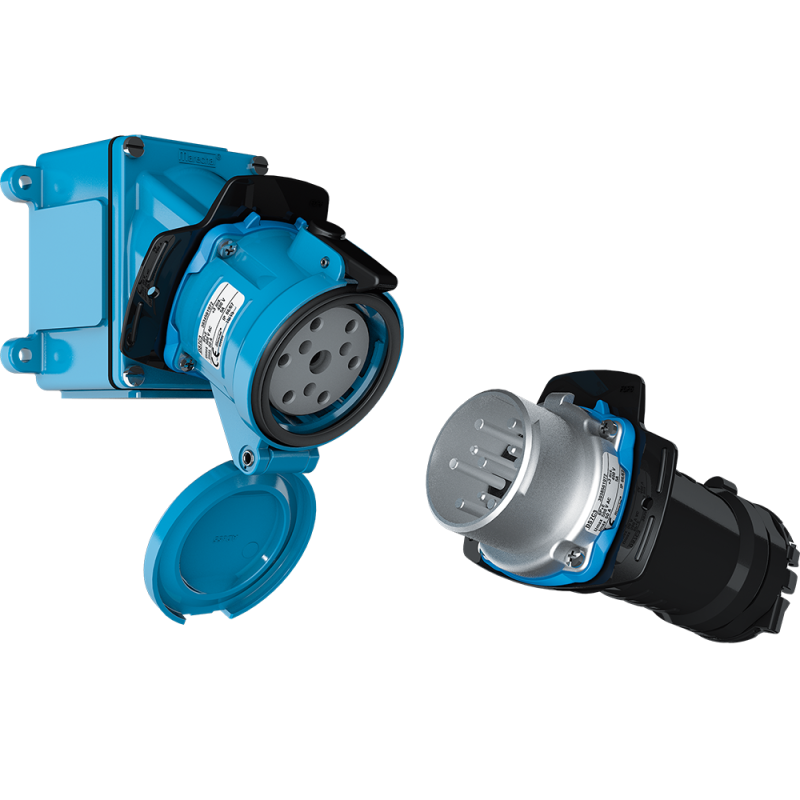

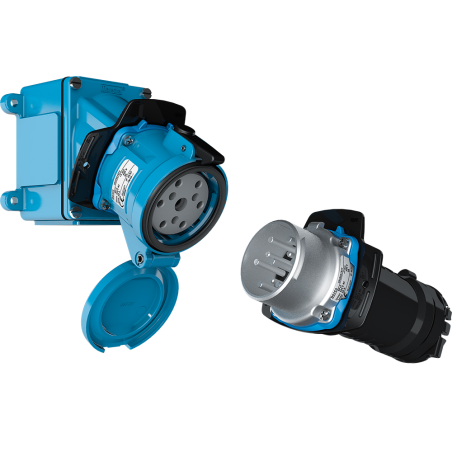

DS7C3 DECONTACTOR Socket and Plug (50 A, 500 V) – Multi-Pin Connector for Motors

DS7C3 – This compact and reliable multi-pin socket and plug is designed for industrial applications, particularly for powering two-speed motors and star-delta starters. With its built-in disconnect function, this connector combines safety and high performance in harsh operating environments.

Key Features and Specifications

The DS7C3 connector offers advanced features in a rugged housing, meeting the demanding industrial requirements for powering machinery.

  • Number of Contacts: 7 Contacts.
  • Rated Current: 50 A (data from product specifications).
  • Rated Voltage: 500 V (data from product specifications).
  • Automatic Sealing: IP66/IP67.
  • Housing: Polymer or metal casing (IK09 mechanical resistance).

Standard Compliance and Certifications

DS7C3 sockets and plugs comply with key European and international regulations, ensuring safe use worldwide.

  • Compliance with the European Low Voltage Directive (LVD) and RoHS (CE marking) and the European REACH Regulation.
  • Compliance with the IEC/EN 60309-1, IEC/EN 60309-4, and IEC/EN 60947-3 standards.
  • Certified by the following organizations: TR CU (Russia).
