Manufacturer: MARECHAL ELECTRIC

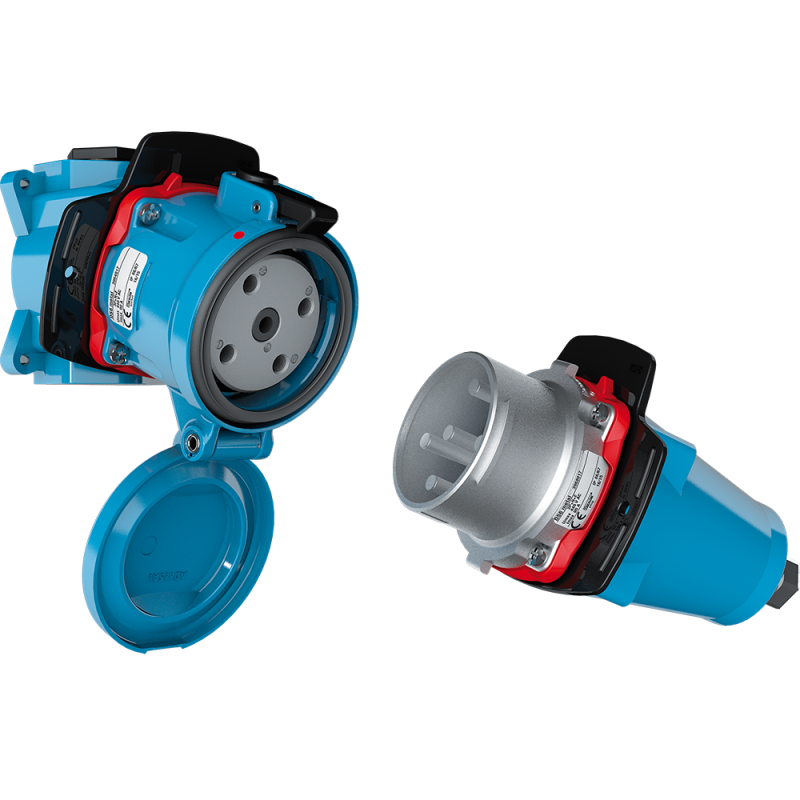

High current connector - decontactor 90A 1000V MAR-DS6

  • MAR-DS6

DS6 DECONTACTOR Socket and Plug (90 A, 1000 V) – Power and Safety for Industry

Compact, durable, and hermetically sealed, this industrial socket and plug with built-in disconnect switch offers a wide range of mounting options. DS6 DECONTACTOR plugs and sockets meet all industrial electrical connection requirements, supporting a rated current of 90 A and voltages up to 1000 V.

Key Features and Design of the DS6 Connector

The DS6 series features high current capacity in a compact housing, ensuring safe disconnection under load and reliability in the harshest environmental conditions.

  • Built-in breaking capacity AC-22 and AC-23.
  • Automatic IP rating: IP66/IP67 (protection against powerful water jets and flooding).
  • Up to 4 auxiliary units can be installed.
  • Polymer or metal casing (Poly or metal casing), mechanical resistance IK09.
  • Electrical parameters: 90 A, 1000 V (data from the product specification).

Global compliance with standards and certifications

DS6 connectors guarantee full compliance with key directives and technical standards worldwide, confirmed by numerous certification bodies.

  • Compliance with the European Low Voltage Directive (LVD) and RoHS (CE marking) and the European REACH regulation.
  • Compliance with the standards IEC/EN 60309-1, IEC/EN 60309-4, IEC/EN 60947-3 (defining the breaking capacity) for use categories AC-22 and AC-23).
  • Compliance with standards UL 1682, UL 2682 (USA), CSA C22.2 NR 182.1-07 (Canada), GB/T 11918.1 (China).
  • Certification by leading organizations: LCIE (France), UL (USA), VDE (Germany), TR CU (Russia), CSA (Canada), CQC (China), SGBP (Singapore).
  • Ensures compliance of electrical machines with the European Machinery Directive in the scope of disconnectors and the EN 60204-1 standard: Machinery Safety - Electrical Equipment of Machines.
  • Ensures compliance of electrical installations with the decrees of August 30, 2010, September 22, 2010, and the implementing decrees of the French Labor Code regarding occupational health and safety when using electrical installations.
  • Ensures compliance of electrical installations with national regulations for worker protection in Belgium, Spain, and Italy.
  • Ensures compliance of electrical installations with the IEC/HD 60364 and NF C 15-100 standards.
