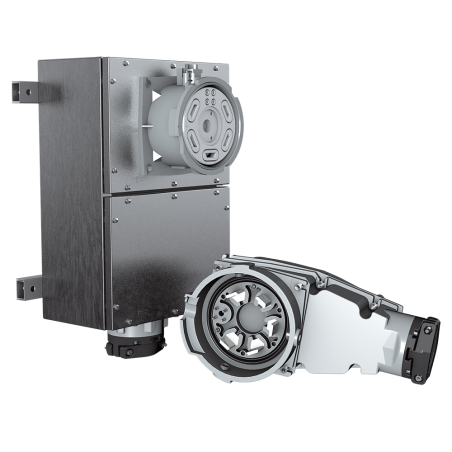

PFC6 Industrial Socket and Plug (600 A, 1000 V) – Highest Power and IK10 Rating

The hermetically sealed PFC6 high-power sockets and plugs (600 A) are designed for connecting large appliances and generator sets in demanding environments. They are used in quarries, powering tunneling machines, port machinery, or boats, and in municipal equipment and public services. Thanks to its IK10-rated metal housing, this connector provides maximum protection and reliable power supply with currents up to 600 A and voltages up to 1000 V.

Key Features and Functionality of the PFC6 Series

The PFC6 connector combines extreme current capacity with advanced control functionality, essential for powering critical, large industrial equipment.

• Electrical Parameters: 600 A, 1000 V (data from the product specifications).
• Automatic Protection Class: IP66/IP67 (protection against powerful water jets and immersion).
• Additional Contacts: 2 auxiliary contacts + 2 pilot contacts.
• Metal casing, highest resistance Mechanical IK10.
• Operating temperature: from -40 °C to +60 °C.

Compliance with safety standards and regulations

PFC6 connectors meet key European, American, and Canadian standards, ensuring global compliance and safe use.

• Compliance with European Low Voltage Directives (LVD) and RoHS (CE marking) and the European REACH regulation.
• Compliance with UL 1682 (USA) and CSA C22.2 NR 182.1-07 (Canada) standards.
• Ensures compliance of electrical machines with European Machinery Directive regarding disconnectors.
• Ensures compliance of electrical installations with the decrees of August 30, 2010, September 22, 2010 and the implementing decrees of the French Labor Code regarding occupational health and safety when using electrical installations.
• Ensures compliance of electrical installations with the IEC/HD 60364 and NF C 15-100 standards.
