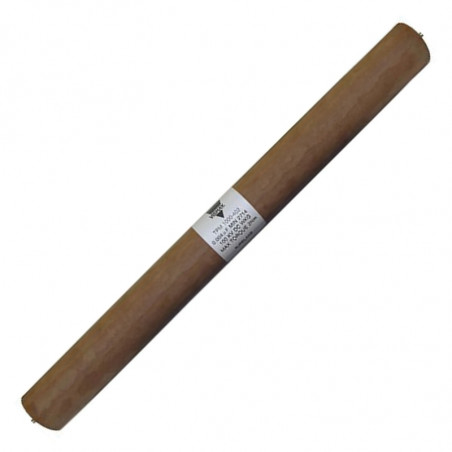

High voltage capacitors - ET series
  • High voltage capacitors - ET series

Photos are for informational purposes only. View product specification

Manufacturer: Vishay

High voltage capacitors - ET series

HIGH VOLTAGE CAPACITORS - ET SERIES

Application:
HV power supplies, HV filters, RF transmitters,Roentgen generator
Electrical data
Temperature range
-55°C - 85°C
Capacity tolerance

• standard
±10% @ 1 kHz
• option
±5% @ 1 kHz

Capacitors with (*) mark have20% tolerance.

Power coefficient
0,5 % (20°C; 1kHz)
Assembly
arbitrary


TypeVoltage
[VDC]		Capacity
[µF]		Dimensions
[mm]
LD
ET10-103W 1000 0,01* 42 17
ET10-203W 1000 0,02* 42 17
ET10-503W 1000 0,05 48 17
ET10-104 1000 0,1 48 20
ET10-254 1000 0,25 60 22
ET10-504 1000 0,5 70 30
ET10-504X 1000 0,5 95 25
ET10-105 1000 1 110 30
ET10-205 1000 2 110 35
ET15-103W 1500 0,01* 42 17
ET15-203W 1500 0,02* 42 20
ET15-503 1500 0,05 42 22
ET15-104 1500 0,1 48 25
ET15-254 1500 0,25 60 30
ET15-504 1500 0,5 110 25
ET15-105 1500 1 110 35
ET15-205 1500 2 110 42
ET20-103W 2000 0,01* 48 17
ET20-203W 2000 0,02* 48 17
ET20-503W 2000 0,05 60 17
ET20-503X 2000 0,05 48 20
ET20-104 2000 0,1 60 22
ET20-104X 2000 0,1 48 25
ET20-254 2000 0,25 60 30
ET20-254X 2000 0,25 75 25
ET20-504 2000 0,5 75 35
ET20-105 2000 1 110 35
ET30-102W 3000 0,001* 42 17
ET30-202W 3000 0,002* 42 17
ET30-502W 3000 0,005* 42 17
ET30-103X 3000 0,01* 42 20
ET30-203 3000 0,02 48 20
ET30-503 3000 0,05 55 25
ET30-104 3000 0,1 55 30
ET30-254 3000 0,25 60 35
ET30-254X 3000 0,25 75 30
ET30-504 3000 0,5 75 42
ET30-105 3000 1 110 42
ET40-102W 4000 0,001* 42 17
ET40-202W 4000 0,002* 42 17
ET40-502W 4000 0,005* 42 17
ET40-103W 4000 0,01* 48 17
ET40-103X 4000 0,01 42 20
ET40-203 4000 0,02 48 20
ET40-503 4000 0,05 60 22
ET40-104 4000 0,1 60 30
ET40-254 4000 0,25 75 35
ET40-254X 4000 0,25 60 42
ET40-504 4000 0,5 95 42
TypeVoltage
[VDC]		Capacity
[µF]		Dimensions
[mm]
LD
ET50-102W 5000 0,001* 42 17
ET50-202W 5000 0,002* 42 17
ET50-502W 5000 0,005* 42 20
ET50-103 5000 0,01 48 20
ET50-203 5000 0,02 48 22
ET50-503 5000 0,05 60 25
ET50-104 5000 0,01 75 30
ET50-254 5000 0,25 95 35
ET50-504 5000 0,5 110 42
ET60-102W 6000 0,001* 55 17
ET60-202W 6000 0,002* 55 17
ET60-502 6000 0,005* 65 17
ET60-103 6000 0,01 65 20
ET60-203 6000 0,02 80 20
ET60-503 6000 0,05 100 25
ET60-104 6000 0,1 100 35
ET60-254 6000 0,25 135 42
ET80-102W 8000 0,001* 65 17
ET80-202W 8000 0,002* 65 17
ET80-502 8000 0,005* 65 20
ET80-103 8000 0,01 80 20
ET80-203 8000 0,02 80 30
ET80-503 8000 0,05 105 35
ET80-104 8000 0,1 105 42
ET80-254 8000 0,25 170 42
ET100-102W 10 KV 0,001* 65 17
ET100-202W 10 KV 0,002* 65 17
ET100-502 10 KV 0,005* 65 22
ET100-103 10 KV 0,01 80 22
ET100-203 10 KV 0,02 80 30
ET100-503 10 KV 0,05 105 35
ET100-104 10 KV 0,1 170 35
ET100-254 10 KV 0,25 205 42
ET120-102W 12 KV 0,001* 95 17
ET120-202 12 KV 0,002* 95 20
ET120-502 12 KV 0,005* 95 30
ET120-103 12 KV 0,01 115 30
ET120-203 12 KV 0,02 115 35
ET120-503 12 KV 0,05 180 35
ET120-104 12 KV 0,1 180 42
ET150-102W 15 KV 0,001* 95 17
ET150-202 15 KV 0,002* 95 20
ET150-502 15 KV 0,005* 110 20
ET150-103 15 KV 0,01 110 30
ET150-203 15 KV 0,02 110 35
ET150-503 15 KV 0,05 150 42
ET150-104 15 KV 0,1 245 42
ET200-102W 20 KV 0,001* 115 17
ET200-202 20 KV 0,002* 115 20

TypeVoltage
[VDC]		Capacity
[µF]		Dimensions
[mm]
LD
ET200-502 20 0,005* 145 25
ET200-103 20 0,01 145 30
ET200-203 20 0,02 195 30
ET200-503 20 0,05 245 42
ET200-104 20 0,1 320 42
ET250-501W 25 0,0005* 145 17
ET250-102W 25 0,001* 145 20
ET250-202 25 0,002 145 22
ET250-502 25 0,005 175 30
ET250-103 25 0,01 175 35
ET250-203 25 0,02 240 35
ET250-503 25 0,05 300 42
ET300-501W 30 0,0005* 170 17
ET300-102W 30 0,001* 170 20
ET300-202 30 0,002 170 25
ET300-502 30 0,005 205 30
ET300-103 30 0,01 205 35
ET300-203 30 0,02 280 35
ET300-303 30 0,03 280 42
ET400-501W 40 0,0005* 210 17
ET400-102W 40 0,001* 210 20
ET400-202 40 0,002 275 20
ET400-502 40 0,005 275 30
ET400-103 40 0,01 275 42
ET400-203 40 0,02 375 42
ET500-501W 50 0,0005* 275 17
ET500-102W 50 0,001* 275 22
ET500-202 50 0,002 340 22
ET500-502 50 0,005 340 35
ET500-103 50 0,01 205 42
ET600-501W 60 0,0005* 330 20
ET600-102W 60 0,001* 330 25
ET600-202 60 0,002 400 25
ET600-502 60 0,005 400 35

Caution
* - only for special order

Casing – Dimensions


Life time
40°C i UN – 50000 h
85°C i 0,6 UN – 50000 h
Characteristic for 40°C.
