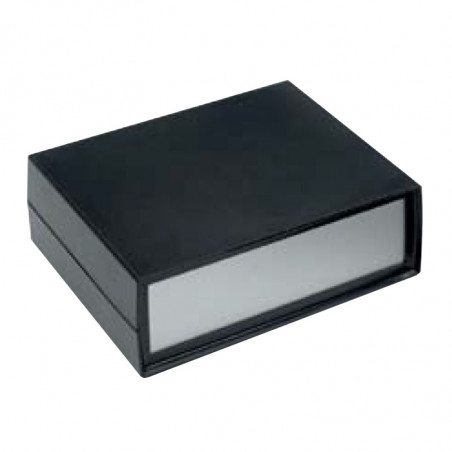

SERIES 3500 - Plastic housing on a U-shaped desk

Discontinued product
Contact us

Classic desktop housing. U-shaped housing. It features an advanced internal layout. It is commonly used in laboratory equipment.

Parameters:

• Integrated PCB mounting points in the housing base facilitate assembly. Depending on the size, it is possible to install 2 and 3 Eurocards in accordance with IEC 60297 (Eurocard).
• The housing configuration consists of two metal carriers on each side, which are attached to the top and bottom shells at the front and rear.
• The metal carriers contain additional fastening elements.
• Heat exchange is carried away through ventilation holes in the base and rear panel.
• The smallest size has four non-slip feet, the three larger sizes are supplied with swivel feet.

Material and standard colors:

• Base and cover made of high-quality ABS.
• Panels in silver color, anodized, 1.7 mm thick, material 1070.
• Light gray similar to RAL 7032 or dark gray similar to RAL 7016.

The standard set includes:

• Cover, base, front and rear panels, two metal Brackets, mounting screws, feet

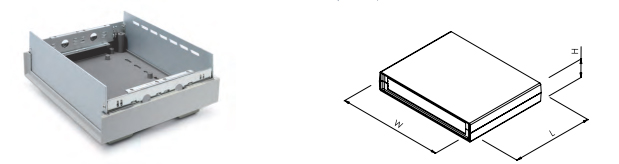

Dimensions
