IGBT modules DIP-C.I.B series/C.I.B series
  • IGBT modules DIP-C.I.B series/C.I.B series

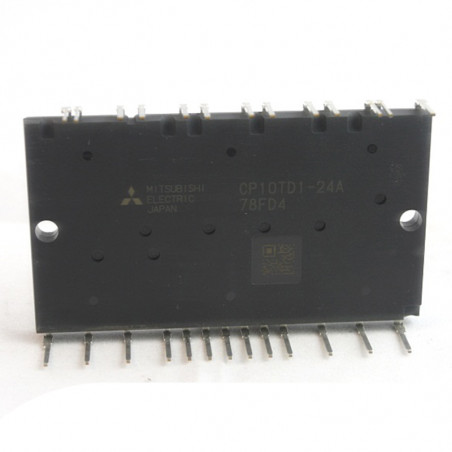

Photos are for informational purposes only. View product specification

Manufacturer: Mitsubishi

IGBT modules DIP-C.I.B series/C.I.B series

IGBT MODULES DIP-C.I.B series/C.I.B SERIES


C.I.B SERIES

Electrical data
- rectifier, inverter and brake in one casing
- newest CSTBT technology (1µm)
- insulated NTC thermistor
-  "open emitter" topology
- Low thermal impedance
IGBT MODULES DIP-C.I.B series/C.I.B SERIES


Table. Electrical data

Type

Ic

[A]

Vces

[V]

CP10TD1-24A

10 1200

CP15TD1-24A

15 1200

CP25TD1-24A

25 1200
IGBT MODULES DIP-C.I.B series/C.I.B SERIES CP10TD1-24A, CP15TD1-24A, CP25TD1-24A
