Manufacturer: Quintex

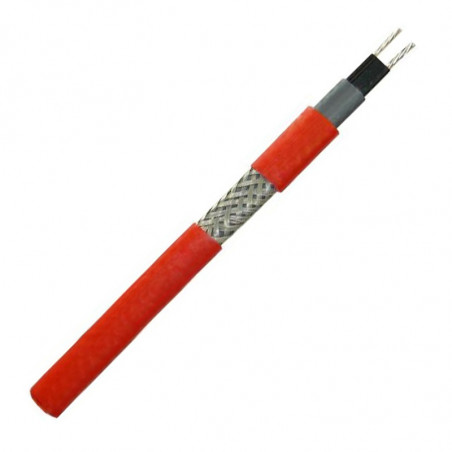

Heating cables for ex series ILH ... / QX 225 ° C

Electrical heating tape for frost protection or temperature maintenance of instrument lines, pipework or vessels in safe or hazardous area environments.

  • Automatically adjusts heat output in response to heated surface temperature.
  • Can be cut-to-length with minimal wastage.
  • Suitable for high process temperature maintenance applications up to +200°C.
  • Full range of terminations, controls, accessories and approvals available.
  • Will not overheat, even when overlapped.
  • Available for 220=277V AC (110V=120V AC upon request)


Quintherm ILH is a high temperature industrial/commercial grade self-regulating heating tape that can be used for high process temperature maintenance of pipework or vessels in the pharmaceutical [&] chemical or construction industries up to 225°C (switched off) which may be subject to steam cleaning. It can be cut-to-length on site to match exact pipe lengths without any complicated design considerations.

ILH is approved for use in non-hazardous, hazardous or corrosive environments to world-wide standards.

Its self-regulating characteristics improve safety and reliability. ILH will not overheat or burnout, even if overlapped upon itself. Its power output is automatically self-regulated in response to pipe or heated surface temperature. This ensures safety and reliability.

Installation of Quintherm ILH is quick and easy, requiring no special tools or skills. Terminations, inline splicing and power connection components are all available in convenient termination kits.

Available Options

ILH../Qx - Base heating tape without any braiding or outerjacket (only for non-Ex applications) (available upon special request)

ILH..C/Qx - Base heating tape with tinned copper braid providing mechanical protection or where Traced equipment does not provide an effective earth path, e.g. plastic or non-metallic pipework or surfaces. (available upon special request)

ILH..CF/Qx - Base heating tape with tinned copper braid and fluoropolymer outerjacket for added mechanical and aggressive chemical protection.


Technical Data

Max. Allowed Exposure Temperature:
Power On:
Power Off:


Min. Installation Temperature: -40OC
Min. Operating Temperature: -65OC
Power Supply: 220-277V AC
Temperature Classification: T3
Max. Resistance of Protective Braiding: ≤18,2 Ω/km

Type Dimensions Nominal (mm) Weight kg/100 m Min. Bending Radius (mm) Gland Size
ILH.. 9,55 x 3,35 6,9 20 M20
ILH..C 10,55 x 4,35 10,4 30 M20
ILH..CF 11,45 x 5,25 13,4 35 M20

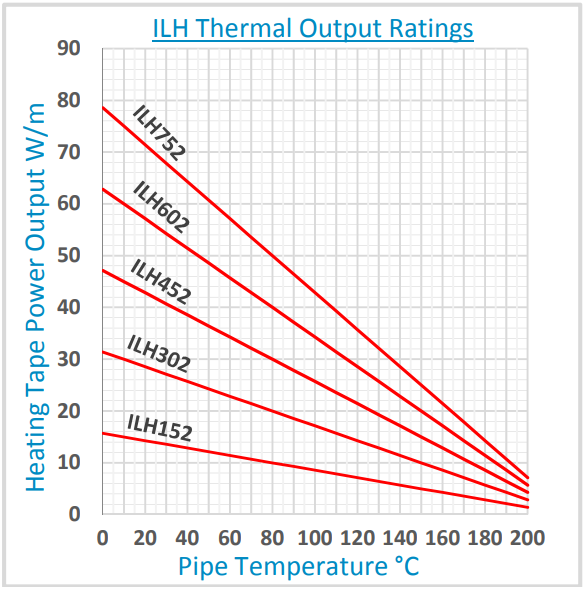

Nominal Power Output at 230V when ILH is installed on thermally insulated carbon steel pipes.

Approvals - Here Download PDF


Max. Cct Length (m) vs. MCB Size (A)

Type Start Temp. 10A 16A 20A 32A
ILH152.. 10°C 76 122 154 154
0°C 70 112 140 146
-20°C 62 98 122 138
-40°C 52 82 102 126
ILH302.. 10°C 52 82 102 108
0°C 46 74 92 104
-20°C 40 66 82 98
-40C 30 50 62 88
ILH452... 10°C 38 62 76 88
0°C 32 52 66 84
-20°C 24 38 46 76
-40°C 14 24 28 46
ILH602.. 10°C 24 38 46 76
0°C 18 30 36 58
-20°C 12 20 26 42
-40°C 8 12 16 24
ILH752.. 10°C 14 24 28 46
0°C 12 18 22 36
-20°C 8 12 16 24
-40°C 4 8 10 14

A full range of accessories are available to compliment our heating tapes, such as terminations, end seals, junction boxes and thermostats. Most items carry separate approvals where required for use in hazardous areas.
