IEC61000-4-11 Standard AC Voltage dip& short interruption tester
IEC61000-4-11 Standard AC Voltage dip& short interruption tester
IEC61000-4-11 Standard AC Voltage dip& short interruption tester

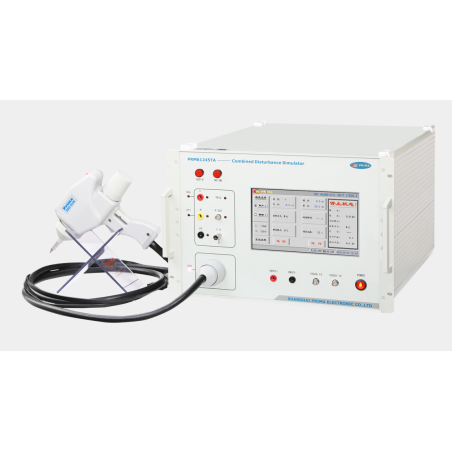

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: EMC Prima

IEC61000-4-11 Standard AC Voltage dip& short interruption tester

  • PRM61245TA

IEC61000-4-11 Standard AC Voltage dip& short interruption tester

Product introduce:

DRP61011 Series were designed for for voltage dips, short interruptions immunity test requirements and provide an assessment for the assessment of low-voltage grid connection of voltage dips, short interruptions interference. The products are fully compliant with the IEC61000-4-11 standard with intelligent, stable performance, easy operation features.

Product characteristic:

  • Touch screen display, Intelligent control, stable performance
  • Programmable design operated by a key setting function
  • Built-in many user modes, programmable design, Easy to operate
  • Built-in intelligent coupling/ decoupling network, Testing safety

Technical parameters：

Model DRP61011TB
Level of voltage dips 0% ～ 120%
Dip duration 1～9999(half cycle)
Phase Synchronism  0 °～ 360°selectable/Asynchronism
Repetition time 1～60000
Dip interval 1～9999(half cycle)
Trigger mode Automatic ，internal trigger
EUT power supply capability Single phase AC 220-240V,20A
Working power supply AC220V 50/60Hz
Ambient temperature 15 ℃～35 ℃
Weight 20kg
Outline dimensions 440×430×180 mm
