Introduction - Industrial housings

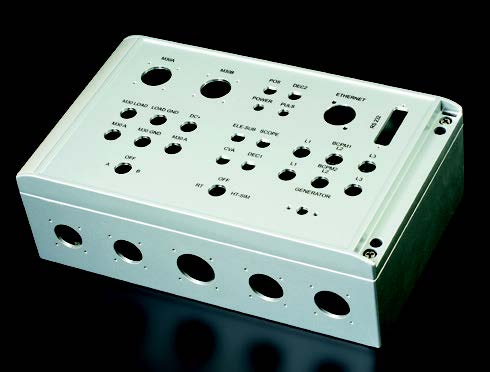

Many electrical/electronic devices require adequate mechanical, environmental, and electromagnetic protection. These features include an attractive, aesthetic appearance and ergonomics. The ideal solution is a high-quality enclosure made from aluminum, glass fiber reinforced polyester, ABS, or polycarbonate, depending on the application.

For an electronic device to function properly, it is necessary to analyze and predict the environment in which it will operate. Factors such as temperature, humidity, salinity, and chemical agents are just some of the parameters that should be considered when selecting the right components.



One of the parameters that enclosures must meet is the IP protection rating.
This classification complies with the EN 60529/DIN40050 standard.

IP XY

IP Mark X Number Protection against solid objects 0 none 1 against solid objects larger than 50 mm in diameter or against contact with the back of the hand 2 against solid objects larger than 12 mm in diameter or against finger contact 3 against solid objects larger than 2.5 mm in diameter or against tool contact 4 against solid objects larger than 1 mm in diameter or against wire contact 5 against external interference. Dust accumulation is possible in quantities that do not interfere with the operation of the device. 6 complete

IP Mark Y Number Protection against solid objects 0 none 1 against vertically falling water drops 2 against vertically falling water drops at an angle of no more than 15° 3 against falling water drops at an angle of no more than 60° 4 against water splashes from multiple angles 5 against water jets from multiple angles 6 against strong water jets from multiple angles 7 against short-term immersion in water 8 against long-term immersion in water 9K against pressurized water jets from multiple angles

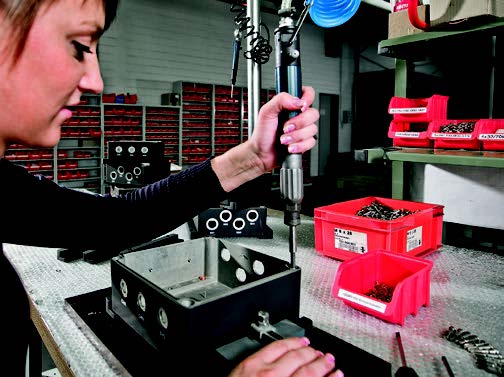

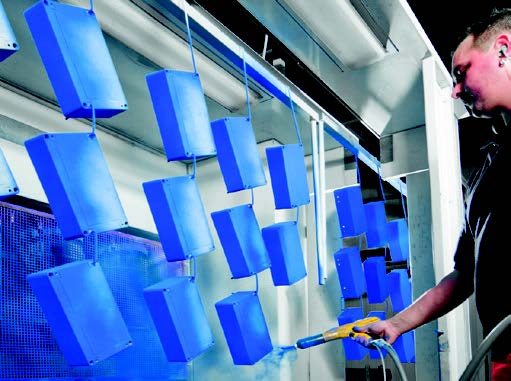

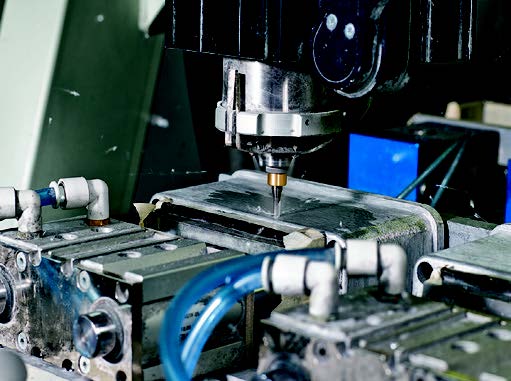

Thanks to our workshop facilities, we can customize our enclosures to individual customer needs. Modifications can include: drilling, milling, engraving, painting.

	Resistant to any concentration		Resistant to max. concentration		Temperature resistant up to
	Limited resistance		No immunity		No data

30 Ammonia

	Casing material					Gasket material
Chemical resistance to	Aluminum G Al Si 12	ABS	Polyamide	Polycarbonate	Polyester GFK	Chloroprene CR	EPDM	Forpren	Polyurethane	Silicone
Acetone
Formic acid	10			10
10		20
Gasoline
Benzene
Brake fluid			60
Butane
Butanol
Calcium chloride
Benzole chloride
Heating oil
Acetic acid	10	10		10	40
Formaldoxime					30
Freon 113
Fruit juice
Glycerin
Heating fuel
Hydraulic oil
Potassium hydroxide solution
