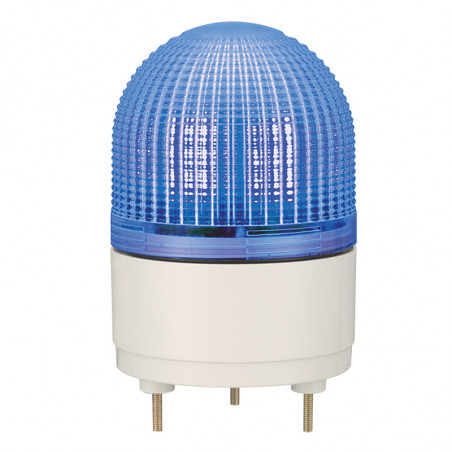

KHE - multisignal signal tower
  • KHE - multisignal signal tower

Photos are for informational purposes only. View product specification

Manufacturer: Patlite

KHE - multisignal signal tower



KHE - multisignal signal tower

Technical data


· Flashing Pattern: 3 Patterns···Simulated Rotation, Strobe, Blinking.
· Enhanced Illumination: Use of long-life, super bright LED.
· Maintenance-free: No bulb replacement needed.
· Energy Efficient: Low power consumption.
· Extended Product Life: Longer life without the use of a motor.
· Installation: Indoor: upright, inverted and sideways; Outdoors: upright only.
· Available Colors: Red, Amber, Green, Blue


TypeSupply voltageColourPower consumptionCurrent consumptionLight intensity
KHE-R 24V DC without polarisation Red 8,2W 340mA 10cd
KHE-Y Yellow 8,2W 340mA 15cd
KHE-G Green 10,1W 420mA 15cd
KHE-B Blue 21,6W 900mA 3cd



Assembly dimensions [mm]
