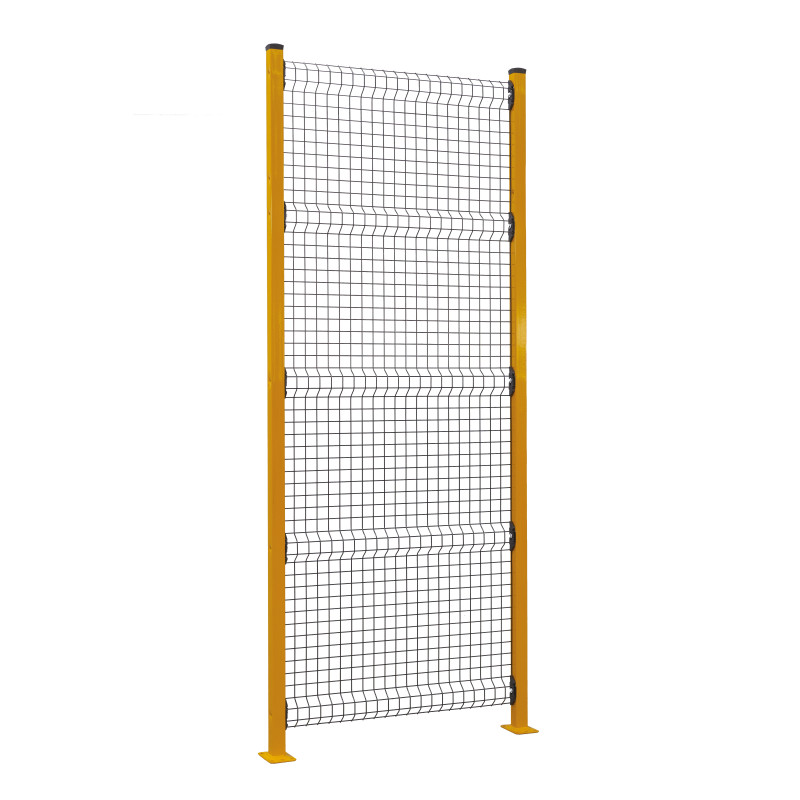

KLASSIK security panel

Specifications for protective panels – Klassik type

• Minimum distance from hazard: > 200 mm

• Mesh dimensions:
Mesh mesh size: 40x40 - wire Ø 4 mm

• Custom widths available upon request (mesh spacing: 44 mm)

• Standard colors:
Black RAL 9005
Yellow RAL 1007

• Custom colors, also available as a sample (additional cost)

• Mounting system: sKatto 111 board with screw

H 2000

KLASSIK	H (mm)	L (mm)
012	1890	2512
013	1890	1984
014	1890	1456
015	1890	1148
016	1890	928
017	1890	708
018	1890	444
019	1890	224
