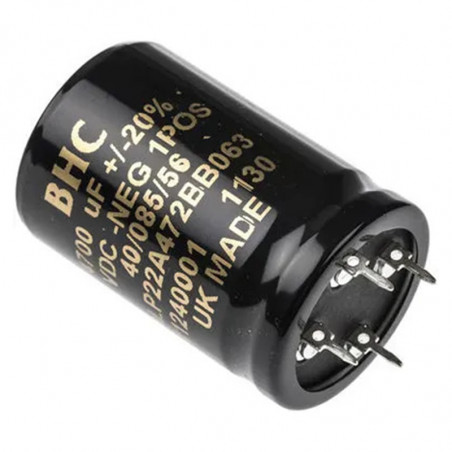

Leads for PCB and soldering - ALP/T 20 series

Technical data:

Capacity range: 100µF - 68000µF
Tolerance: -10% + 30%
Voltage range: 10 V - 450 VDC
Temperature range: -40°C - 85°C
Casing dimensions: 25x35mm - 40x105mm

Casings dimensions in mm

Casing code D
±1		 L
±2		 Clamping rings
AA 25 35 V2/H1
AB 25 45 V2/H1
BB 30 45 -
CB 35 45 V3/H2
CD 35 55 V3/H2
DB 40 45 V9
DD 40 55 V9
DE 40 75 V9
DF 40 105 V9

ALP terminal layout

Caution:
Terminal 1 - positive

Life length in temperature range at nominal voltage and current

Diameter
[mm]		 Life length
[h]
25 12000
30 15000
35 18000
40
