Manufacturer: STEGO

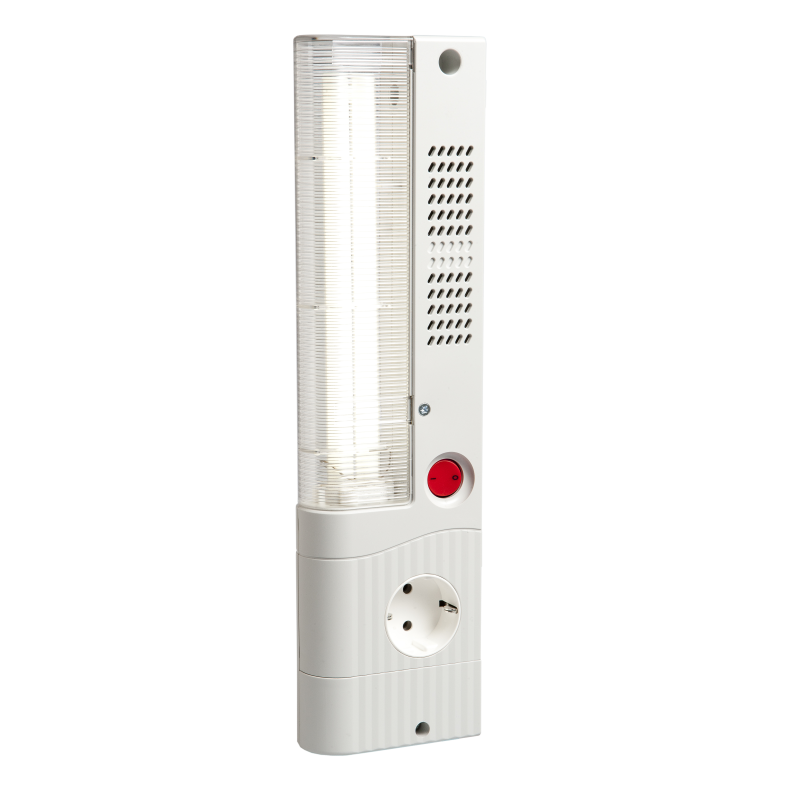

SL 025 - Lamp for electric housing with energy-saving bulb - 02527.1-14

  • 02527.1-14
  • Supply voltage 230 V AC
  • Dimensions 91 x 40 x 345 mm
  • Switching Wyłącznik zał./wył.
  • Protection rating IP20
  • Protection class II
  • Electrical hookup Zacisk 2,5 mm² z odciążeniem, moment dokręcenia 0,8 Nm maks.
  • Weight 500 g
  • Lumen 510 Lm

Narrow control cabinet light with a switch and an energy-saving lamp as the light source. It emits a luminous flux of 900 lm for safe illumination of electrical cabinets and enclosures. The electronic ballast and optional power socket are integrated into the slim housing of the control cabinet light.

  • Switch with integrated electronic ballast
  • Screw mounting, optional magnetic mounting
  • Optionally with or without integrated socket, country variants: DE, FR, CH, UK, USA
  • DC variants available
