Manufacturer: Quintex

Cable glands performed by ex, twisted LEM type ...., List ...., Le ....

Application

  • Wide temperature range
  • Directly usable, no re-approval
  • International approvals
  • Versatile use
  • Development acc. to customer request
  • Guidance through the approval process (for new devices)

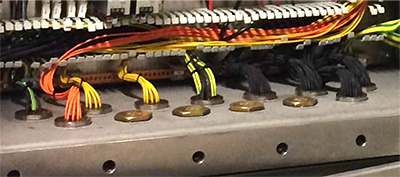

Line bushings are used to electrically connect equipment in potentially explosive atmospheres. The connection is always established either between a flameproof enclosure and an enclosure of another type of protection in accordance with DIN EN 60079-0. Alternatively, two flameproof enclosures are connected. Thus cables are protected from direct contact . Varying with the design, line bushings can be used in intrinsically safe, measuring, control or energy circuits. Line busings that do not feature cables, i. e. they are only cast, can be used to seal flameproof enclosures of the “d“ type of protection.
Via line bushings, holes or threads can be closed. If the system is to be extended at a later time, if required, line bushings containing cables can replace the existing, sealed ones.



Typ LEM...(screwable)

Typ LEP...(plugable)

Typ LE....(versatile)

przepust kablowy typu LEM...(wkręcany) przepust kablowy typu LEP...(wtykany) przepust kablowy LE...(obrotowy)


  Specifications

Voltage Do 1kV
Wires 0,07 mm2 to 95 mm2
Temperature range -55oC to 200oC
Max. wires quantity to 50
Thread M10 bis M42
Thread length >10 mm
Material brass nickel plated, others on request
Standard wires Radox 125
-50oC bis 115oC
Others on request
Certification ATEX II 2 G EX d IIC T4/T5/T6
Approval instituts:
EPS08ATEX1105X
IECEX, CSA, CSA_US, GOST
