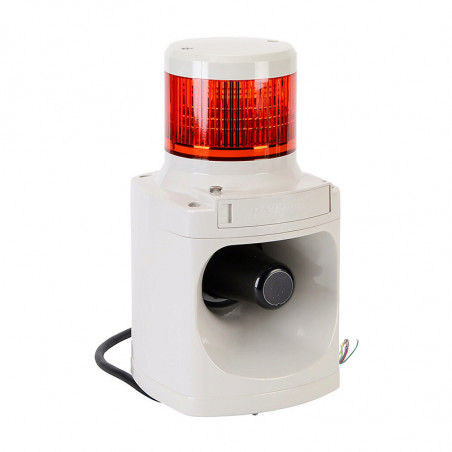

LKEH - light - sound signalizer (102dB in 1m distance)
LKEH - light - sound signalizer (102dB in 1m distance)

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Patlite

LKEH - light - sound signalizer (102dB in 1m distance)

Technical data
The LKEH series is a large horn and signal tower combination that supplies greater sound and capability.
• Visible from great distance with ultra bright LEDs and 100mm diameter lens.
• Safe for use at high vibration environment with robust 2G vibration resistant design.
• Easy to control with only one common wire for both LEDs and audible signals.
• CE, RoHS, IP53, (UL, c-UL pending).
• Field programmable with SD card. (Sold separately)
• Volume is adjustable from 0 to 105dB (at 1m) to fit various environments.
• Smooth LED lens surface.

※PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in LKEH-FA, FC and FD types outside of Japan. For additional information regarding this issue, please contact your local PATLITE sales representative.

Sounds
Voice synthetizer LKEH-FV


32 sounds (LKEH-FA/FC/FD/FE):
Available 4 types of sounds(tables below):

Type A
Beep (slow intermittent horn) Stutter (rapid intermittent horn) Bell (elear highpitched beli) Yelp (rapid siren)
Rapid Hi-Lo Melody Chime Synthesized Piano Synthesized Bell
Stutter (rapid intermittent horn) Bell
(elear highpitched beli)		 Synthesized Melody Chime Chime Cali sign
Fur Elise MaideiYs Prayer Minuet Annie Laurie
London Bridge is Falling Down Holdiridia Mary Had a Little Lamb Camptown Races
Kuck kuck Der Schmied im Walde On the Bridge of Avignon Daydream Believer
Amaryllis Mozart Symphony No. 40 Itsy Bitsy Spider Ich bin ein Musikante
Jeux Interdits Katuscha Grandfather's Clock Ave Maria

Type C
Beep (slow intermittent horn) Stutter (rapid intermittent horn) Bell (elear highpitched beli) Yelp (rapid siren)
Rapid Hi-Lo Melody Chime Synthesized Piano Synthesized Bell
Stutter (rapid intermittent horn)
Bell (elear highpitched beli)		 Synthesized Melody Chime Chime Cali sign
Can't Take My Eyes off of You Top of the World The Entertainer Amazing Grace
Amairono Kamino Otome Les Champs-Elysees Canon Rara Sanshain
Uchuusenkan Yamato Oshiete Makenaide Gonna Fly Now (Theme for "Rocky")
1 Dont Want to Miss a Thing Yozorano Mukou Aiwa Katsu Haruyo Koi
Gattsudaze Odoru Ponpokorin Imasugu Kisu Mi Truth

Type D
Beep (slow intermittent horn) Stutter (rapid intermittent horn) Bell (elear highpitched beli) Yelp (rapid siren)
Rapid Hi-Lo Melody Chime Synthesized Piano Synthesized Bell
Runner Mamotte Agetai Chime Cali sign
Oribiao Kikinagara A September Doyoubino Koibito Akino Kehai
Saafu Tengoku Sukii Tengoku Iro Howaitoburendo Happy Birthday Hi Ho
l've been working on the Railroad Bear Song Toys Go Cha Cha Cha Konnako Irukana
Wiegenlied Rudolph the Red-nosed Reindeer She Wore a Yellow Ribbon Oh My Darling Clementine
Yellow Rosę of Texas Yankee Doodle When the Saints Go Marching In Londonderry Air

Type D
Beep (slow intermittent horn) Stutter (rapid intermittent horn) Irwerted Receille Annie Laurie
Stutter (rapid intermittent hom) Synthesized Melody Chime Galactic Motor London Bridge is Falling Down
Bell (elear highpitched beli) Chime Ringing Phone Mary Had a Little Lamb
Yelp (rapid siren) Cali Sign Two Tonę Camptown Races
Rapid Hi-Lo Train Ride Alarm Clock Amaryllis
Melody Chime Galloping Hi-Lo Ringing Hi-Lo Mozart Symphony No.40
Synthesized Piano Alien Chatter Fur Elise Ave Maria
Synthesized Bell Falling Crystals Minuet in G Grandfather's Clock


Dimensions[mm]
Height[mm]
1 module: 265.2
2 module: 325.3
3 module: 385.4
4 module: 445.5
Catalogue number
1 - Module quantity:
2 - Supply voltage:
02: 24V DC
10: 100V AC
20: 230V AC
3 - Sound:
FV - Speech synthesizer
FA, FC, FD, FE - 32 sounds
4 - Colour:
R - Red
Y - Yellow
G - Green
B - Blue
C - Transparent

LKEH-FV type
60 flashes/min
Model Supply voltage Voltage range Light module quantity Power consumption Weight
LKEH-102FV 24V DC 24V DC±10% 1 14W 1.8kg
LKEH-202FV 2 16W 2.0kg
LKEH-302FV 3 18W 2.2kg
LKEH-402FV 4 20W 2.4kg
LKEH-110FV 100V AC 100V AC±10% 1 17W 2.5kg
LKEH-210FV 2 20W 2.7kg
LKEH-310FV 3 23W 2.9kg
LKEH-410FV 4 26W 3.1kg
LKEH-120FV 220V AC 220V AC±10% 1 17W 2.5kg
LKEH-220FV 2 20W 2.7kg
LKEH-320FV 3 23W 2.9kg
LKEH-420FV 4 26W 3.1kg


LKEH-F type
60 flashes/min
Model Supply voltage Voltage range Light module quantity Power consumption Weight
LKEH-102FA/FC/FD/FE 24V DC 24V DC±10% 1 10.6W 1.8kg
LKEH-202FA/FC/FD/FE 2 12.4W 2.0kg
LKEH-302FA/FC/FD/FE 3 14.2W 2.2kg
LKEH-402FA/FC/FD/FE 4 16W 2.4kg
LKEH-110FA/FC/FD/FE 100V AC 100V AC±10% 1 17W 2.5kg
LKEH-210FA/FC/FD/FE 2 20W 2.7kg
LKEH-310FA/FC/FD/FE 3 23W 2.9kg
LKEH-410FA/FC/FD/FE 4 26W 3.1kg
LKEH-120FA/FC/FD/FE 220V AC 220V AC±10% 1 17W 2.5kg
LKEH-220FA/FC/FD/FE 2 20W 2.7kg
LKEH-320FA/FC/FD/FE 3 23W 2.9kg
LKEH-420FA/FC/FD/FE 4 26W 3.1kg



Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

Technical data
The LKEH series is a large horn and signal tower combination that supplies greater sound and capability.
• Visible from great distance with ultra bright LEDs and 100mm diameter lens.
• Safe for use at high vibration environment with robust 2G vibration resistant design.
• Easy to control with only one common wire for both LEDs and audible signals.
• CE, RoHS, IP53, (UL, c-UL pending).
• Field programmable with SD card. (Sold separately)
• Volume is adjustable from 0 to 105dB (at 1m) to fit various environments.
• Smooth LED lens surface.

※PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in LKEH-FA, FC and FD types outside of Japan. For additional information regarding this issue, please contact your local PATLITE sales representative.

Sounds
Voice synthetizer LKEH-FV


32 sounds (LKEH-FA/FC/FD/FE):
Available 4 types of sounds(tables below):

Type A
Beep (slow intermittent horn) Stutter (rapid intermittent horn) Bell (elear highpitched beli) Yelp (rapid siren)
Rapid Hi-Lo Melody Chime Synthesized Piano Synthesized Bell
Stutter (rapid intermittent horn) Bell
(elear highpitched beli)		 Synthesized Melody Chime Chime Cali sign
Fur Elise MaideiYs Prayer Minuet Annie Laurie
London Bridge is Falling Down Holdiridia Mary Had a Little Lamb Camptown Races
Kuck kuck Der Schmied im Walde On the Bridge of Avignon Daydream Believer
Amaryllis Mozart Symphony No. 40 Itsy Bitsy Spider Ich bin ein Musikante
Jeux Interdits Katuscha Grandfather's Clock Ave Maria

Type C
Beep (slow intermittent horn) Stutter (rapid intermittent horn) Bell (elear highpitched beli) Yelp (rapid siren)
Rapid Hi-Lo Melody Chime Synthesized Piano Synthesized Bell
Stutter (rapid intermittent horn)
Bell (elear highpitched beli)		 Synthesized Melody Chime Chime Cali sign
Can't Take My Eyes off of You Top of the World The Entertainer Amazing Grace
Amairono Kamino Otome Les Champs-Elysees Canon Rara Sanshain
Uchuusenkan Yamato Oshiete Makenaide Gonna Fly Now (Theme for "Rocky")
1 Dont Want to Miss a Thing Yozorano Mukou Aiwa Katsu Haruyo Koi
Gattsudaze Odoru Ponpokorin Imasugu Kisu Mi Truth

Type D
Beep (slow intermittent horn) Stutter (rapid intermittent horn) Bell (elear highpitched beli) Yelp (rapid siren)
Rapid Hi-Lo Melody Chime Synthesized Piano Synthesized Bell
Runner Mamotte Agetai Chime Cali sign
Oribiao Kikinagara A September Doyoubino Koibito Akino Kehai
Saafu Tengoku Sukii Tengoku Iro Howaitoburendo Happy Birthday Hi Ho
l've been working on the Railroad Bear Song Toys Go Cha Cha Cha Konnako Irukana
Wiegenlied Rudolph the Red-nosed Reindeer She Wore a Yellow Ribbon Oh My Darling Clementine
Yellow Rosę of Texas Yankee Doodle When the Saints Go Marching In Londonderry Air

Type D
Beep (slow intermittent horn) Stutter (rapid intermittent horn) Irwerted Receille Annie Laurie
Stutter (rapid intermittent hom) Synthesized Melody Chime Galactic Motor London Bridge is Falling Down
Bell (elear highpitched beli) Chime Ringing Phone Mary Had a Little Lamb
Yelp (rapid siren) Cali Sign Two Tonę Camptown Races
Rapid Hi-Lo Train Ride Alarm Clock Amaryllis
Melody Chime Galloping Hi-Lo Ringing Hi-Lo Mozart Symphony No.40
Synthesized Piano Alien Chatter Fur Elise Ave Maria
Synthesized Bell Falling Crystals Minuet in G Grandfather's Clock


Dimensions[mm]
Height[mm]
1 module: 265.2
2 module: 325.3
3 module: 385.4
4 module: 445.5
Catalogue number
1 - Module quantity:
2 - Supply voltage:
02: 24V DC
10: 100V AC
20: 230V AC
3 - Sound:
FV - Speech synthesizer
FA, FC, FD, FE - 32 sounds
4 - Colour:
R - Red
Y - Yellow
G - Green
B - Blue
C - Transparent

LKEH-FV type
60 flashes/min
Model Supply voltage Voltage range Light module quantity Power consumption Weight
LKEH-102FV 24V DC 24V DC±10% 1 14W 1.8kg
LKEH-202FV 2 16W 2.0kg
LKEH-302FV 3 18W 2.2kg
LKEH-402FV 4 20W 2.4kg
LKEH-110FV 100V AC 100V AC±10% 1 17W 2.5kg
LKEH-210FV 2 20W 2.7kg
LKEH-310FV 3 23W 2.9kg
LKEH-410FV 4 26W 3.1kg
LKEH-120FV 220V AC 220V AC±10% 1 17W 2.5kg
LKEH-220FV 2 20W 2.7kg
LKEH-320FV 3 23W 2.9kg
LKEH-420FV 4 26W 3.1kg


LKEH-F type
60 flashes/min
Model Supply voltage Voltage range Light module quantity Power consumption Weight
LKEH-102FA/FC/FD/FE 24V DC 24V DC±10% 1 10.6W 1.8kg
LKEH-202FA/FC/FD/FE 2 12.4W 2.0kg
LKEH-302FA/FC/FD/FE 3 14.2W 2.2kg
LKEH-402FA/FC/FD/FE 4 16W 2.4kg
LKEH-110FA/FC/FD/FE 100V AC 100V AC±10% 1 17W 2.5kg
LKEH-210FA/FC/FD/FE 2 20W 2.7kg
LKEH-310FA/FC/FD/FE 3 23W 2.9kg
LKEH-410FA/FC/FD/FE 4 26W 3.1kg
LKEH-120FA/FC/FD/FE 220V AC 220V AC±10% 1 17W 2.5kg
LKEH-220FA/FC/FD/FE 2 20W 2.7kg
LKEH-320FA/FC/FD/FE 3 23W 2.9kg
LKEH-420FA/FC/FD/FE 4 26W 3.1kg
