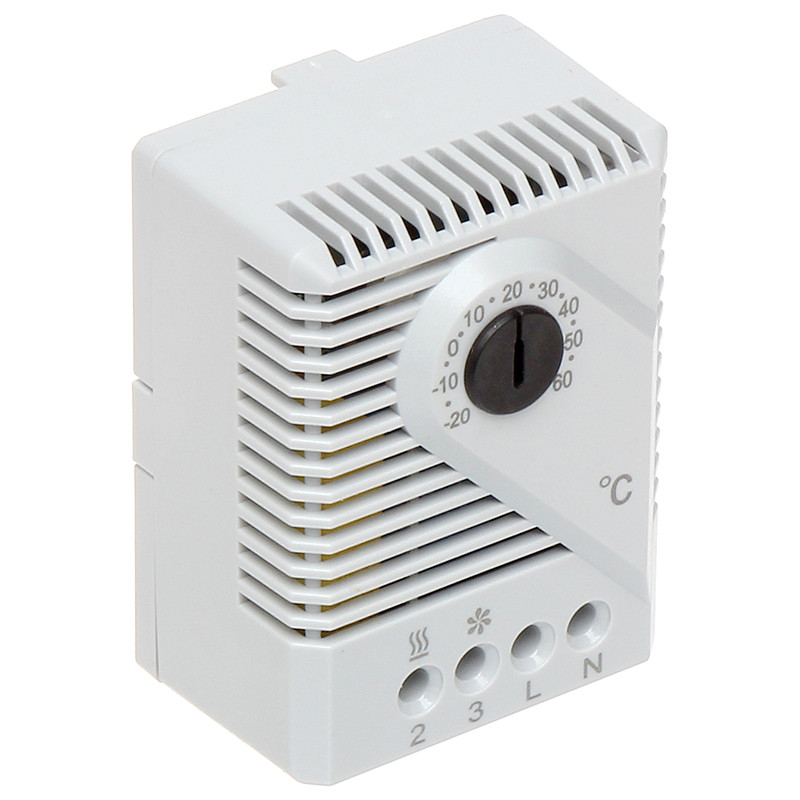

Mechanical thermostat FZK 011
  • Mechanical thermostat FZK 011

Photos are for informational purposes only. View product specification

Mechanical thermostat FZK 011

Mechanical thermostat FZK 011


Set up temperatures
Switch over contact
High contact current
Thermal feedback
For DIN bus
Mechanical thermostat is used for heaters, coolers ventilators control.
Switching over temperature difference
4K(±1,5 tolerance)*
Sensor type
Bimetal
Contact type
contact resistance
Life time
>100 000 cycles
Max contact current, NC
AC 250V 10A (resistant load)
AC 250V 4A (inductive load @ cos phi =0,6
DC 30 W
Max contact current, NO
AC 250V 5A (resistant load)
AC 250V 2A ((inductive load @ cos phi = 0,6
DC 30 W
Kompatybilność
elektromagnetyczna
Zgodnie z normami EN 55014-1-2, EN 61000-3-2, EN 610003
Terminals
4 pole 2,5 mm2
Mounting
For DIN 35mm bus,EN 50022
Casing
plastic  UL94V-0, light grey
Dimensions
67 x 50 x 38 mm
Weight
ok.0,10 kg
Assembly
arbitrary
Operation temperature
-45 do +70 °C
IP
IP20




Load 1 = Ogrzewanie szafy rozdzielczej
  Load 2 = Ventilator z fltrem, chłodziarka, sygnalizacj

Catalogue number
Article numberRangeOperation voltage
01170.0-00 AC 230 V +5 do +60 °C
01170.0-01 AC 230 V +40 do+140 °F
01170.0-02 AC 230 V -20 do +30 °C
01170.9-00 AC 120 V +40 do +140 °F
01170.9-01 AC 120 V +5 do +60 °C
