Manufacturer: FLEXICON

LFHUBRD25 LFHUBRD System

  • LFHUBRD25
  • Interior diameter
  • Exterior diameter
  • Nominal size [mm]
  • Bending radius R [mm]

Properties

  • Temperature range during operation: -25°C to +90°C
  • Free of halogens, sulfur and phosphorus
  • Has antistatic properties
  • Product with very low fire hazard (LFH)
  • Self-extinguishing
  • Provides EMC protection: 49dB@50MHz
  • Abrasion resistance
  • Increased resistance to UV radiation
  • Tensile strength: 300N for size 20mm
  • Compressive strength: 350N
  • Minimum bend radius: 45

Material

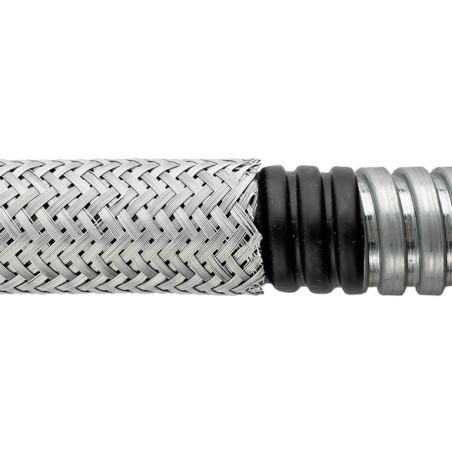

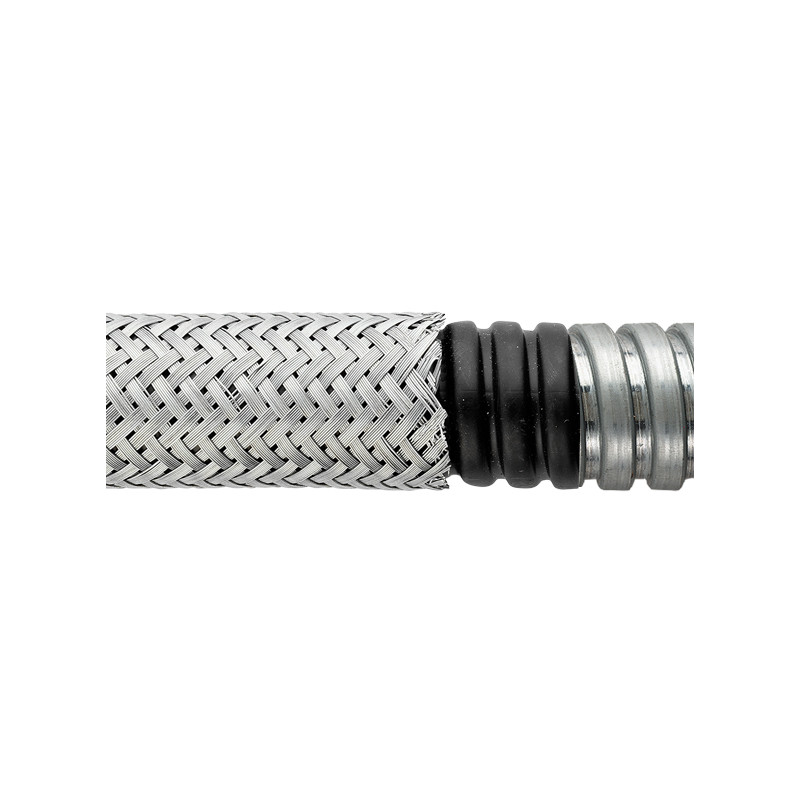

  • Galvanized steel core, additional LFH coating, stainless steel braid

Certificates and standards

  • Standard EN 45545-2 R23-HL3 R22-HL3
  • NFPA130 compliant
  • Compliant with EN61386
  • REACH/RoHS compliant
  • Approved by London Underground
