Manufacturer: FLEXICON

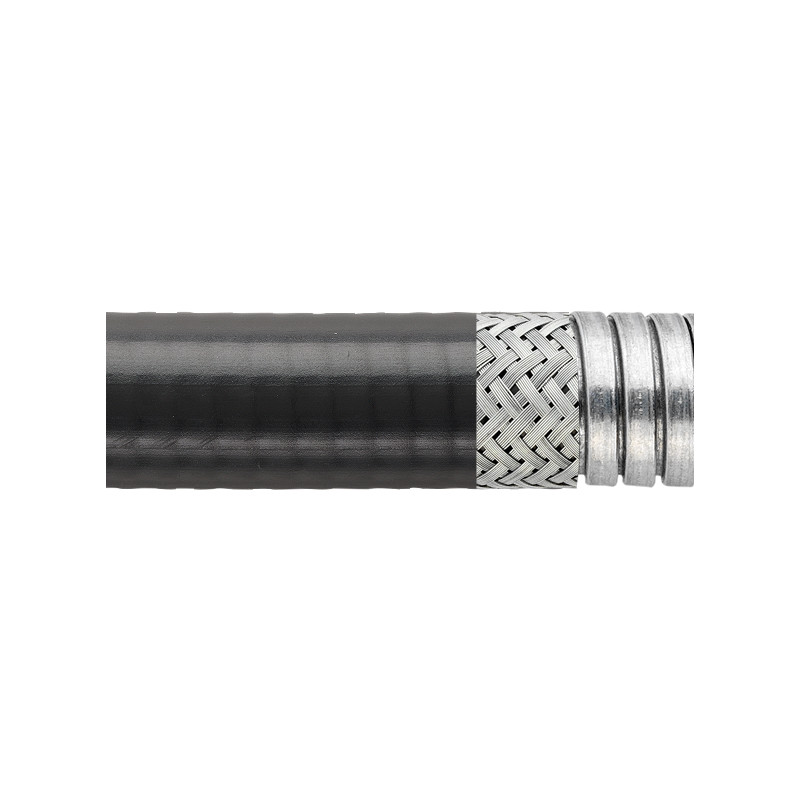

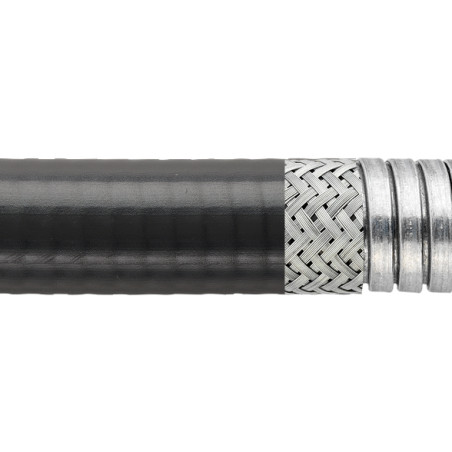

LTBRDLFH20 LTBRDLFH System

  • LTBRDLFH20
  • Interior diameter
  • Exterior diameter
  • Nominal size [mm]
  • Bending radius R [mm]

Properties

  • Temperature range during operation: -25°C to +90°C
  • Free of halogens, sulfur and phosphorus
  • Oil resistant
  • Self-extinguishing
  • Provides EMC protection: 60dB@50MHz
  • Abrasion resistance
  • Product with very low fire hazard (LFH)
  • Standard UV resistance
  • Suitable for applications requiring constant movement
  • Tensile strength: 130N for size 20 mm
  • Compressive strength: 400N
  • Minimum bend radius: 130

Material

  • Galvanized steel, braided core, PVC coated, liquid tight

IP degrees

  • IP66, IP67, IP68, IP69 protection

Certificates and standards

  • EN61373 Cat Vibration and Shock Test
  • Standard EN 45545-2 R23-HL3 R22-HL3
  • NFPA130 compliant
  • Compliant with EN61386
  • flammability class UL94 V0
  • Approved by London Underground
