LTPLFH20 LTPLFH System
LTPLFH20 LTPLFH System

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FLEXICON

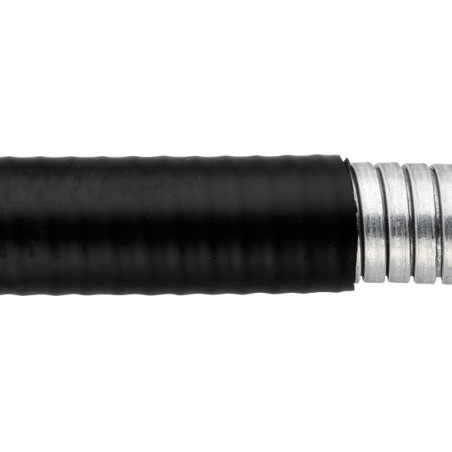

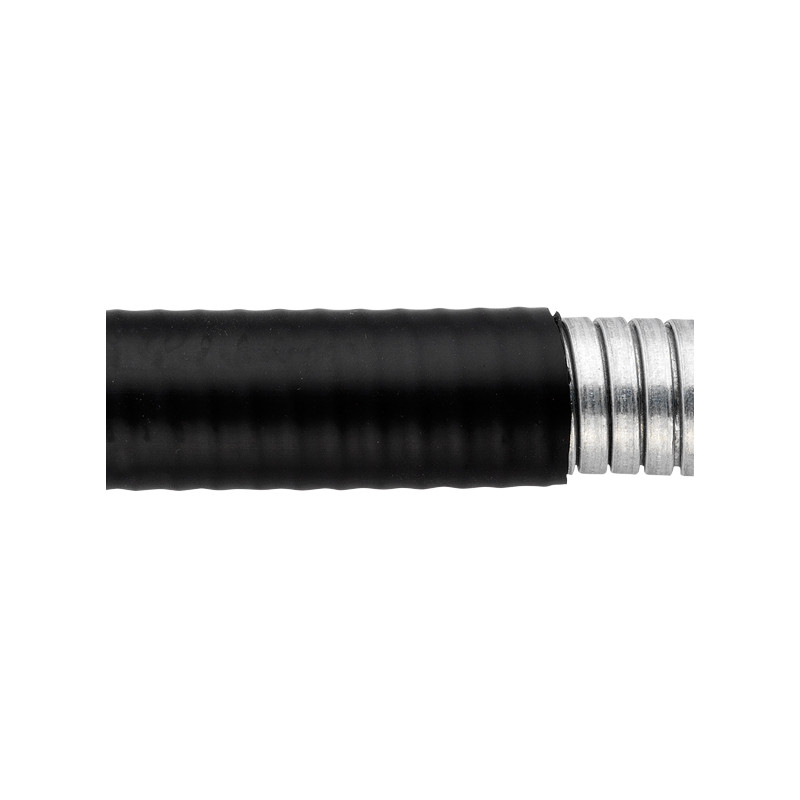

LTPLFH20 LTPLFH System

  • LTPLFH20
  • Interior diameter
  • Exterior diameter
  • Nominal size [mm]
  • Bending radius R [mm]

Properties

  • Temperature range during operation: -25°C to +90°C
  • Free of halogens, sulfur and phosphorus
  • Product with very low fire hazard (LFH)
  • Self-extinguishing
  • Standard UV resistance
  • Tensile strength: 130N for size 20 mm
  • Compressive strength: 400N
  • Minimum bend radius: 100

Material

  • Tin-plated steel, coated, liquid-tight with low fire risk

IP degrees

  • IP66, IP67, IP68, IP69 protection

Certificates and standards

  • REACH/RoHS compliant
  • NFPA130 compliant
  • Compliant with EN61386
  • EN61373 Cat 2 Vibration and Shock Test
  • Standard EN 45545-2 R23-HL3 R22-HL3
  • Approved by London Underground
