NE-IL IO-Link Signal Beacons
  • NE-IL IO-Link Signal Beacons

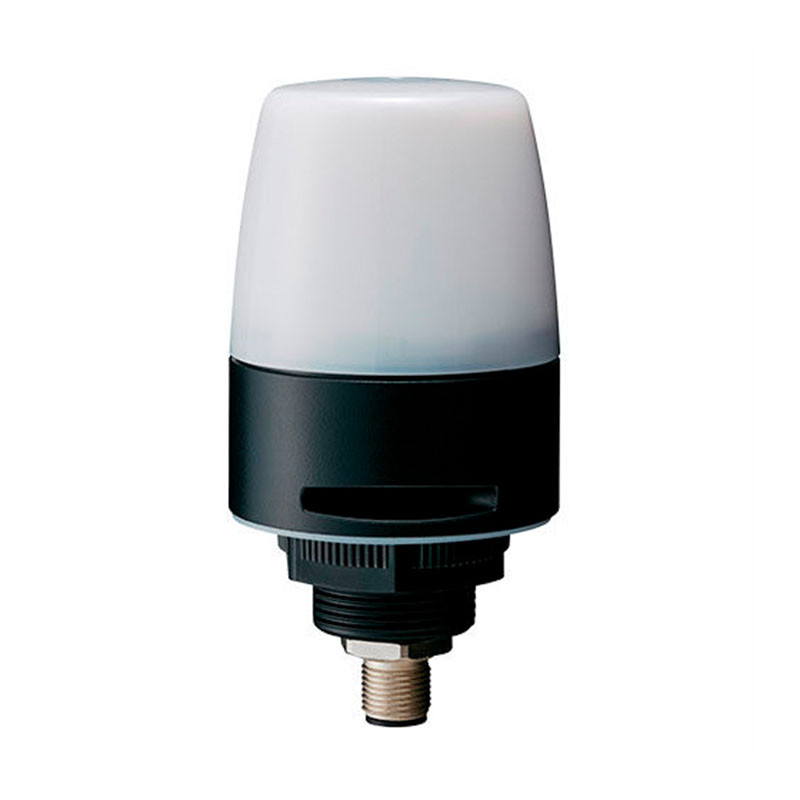

Photos are for informational purposes only. View product specification

NE-IL IO-Link Signal Beacons

NE-IL IO-Link Signal Beacons

The IO-Link Indicator Series seamlessly installs into IO-Link masters and features multi-color LEDs with a touch sensor and rugged housing

Cechy produktu

  • Capacitive touch sensor enables real-time status confirmations
  • Equipped with a Digital/Analog input function for connecting devices not compatible with IO-Link. The NE-IL acts as an I/O hub, able to send data from sensors to the IO-Link master
  • Features an M12 connection for quick and easy installations
  • Status indicator devices connected to an IO-Link master can be controlled collectively
  • Real-time notification of equipment abnormalities enables operators to perform maintenance right away, reducing bottlenecks and downtime
  • Up to 7 colors can be emitted to indicate different equipment conditions
  • High protection rating for operation in harsh environments
  • Frosted lens displays evenly distributed light for unambiguous indication


Model

NE-ILNB-M

With buzzer

NE-ILTB-M

With buzzer
and touch sensor
NE-ILXB-M

With buzzer, touch sensor,
and digital / analog input
Sizeφ56mm
Rated Voltage24V DC
Mounting Location / Mounting DirectionIndoors, Upright
Protection RatingIP65 NEMA TYPE 4X, 13
LED ColorMulti-color (Red, Amber, Green, Blue, White, Purple, Cyan)
LED Unit ModesContinuous / Flashing
Sound PressureTyp. 88 dB [8 sound types (Selectable)]
Conformity Standards
  • EMC Directive (EN 61000-6-4, EN 61000-6-2)
  • RoHS Directive (EN 50581) UL 508, CSA-C22.2 No. 14
  • FCC Part 15 Subpart B Class A
  • KC (KN 61000-6-4, KN 61000-6-2)
ConnectionM12 connector 5 pins A codeM12 connector 8 pins A code
