SiC MOSFETs
  • SiC MOSFETs

Photos are for informational purposes only. View product specification

SiC MOSFETs

Features

  • Low Device Capacitances
  • Temperature Independent Switching Behavior
  • High Avalanche and Short Circuit Ruggedness
  • Low Thermal Resistance
  • Fast and Reliable Body Diode
  • Halogen Free, RoHS Compliant


Applications

  • Electric Vehicles – Power Train and Charging
  • Solar Inverters
  • Smart Grid Transmission and Distribution
  • Motor Drives
  • High Voltage DC-DC and AC-DC Converters
  • Induction Heating and Welding
  • Pulsed Power Applications

Electrical data


SiC MOSFETTypeVDSS [V]RDS(on) [mΩ]ID [A] (25°C)PackageConfiguration
GR20MT12K 1200 20 107 TO-247-4

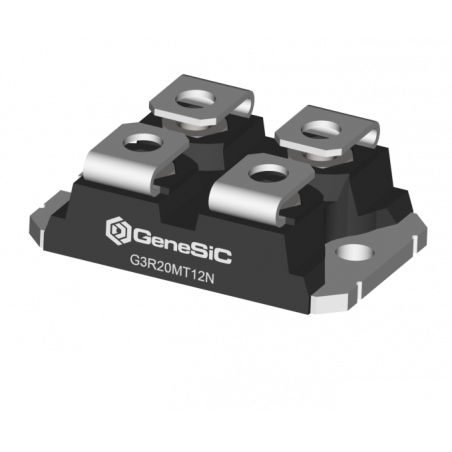

G3R20MT12N 20 95 SOT-227
GR30MT12K 30 78 TO-247-4
GR30MT12J 30 74 TO-263-7
GR40MT12D 40 59 TO-247-3
GR40MT12J 40 57 TO-263-7
G3R40MT12K 40 57 TO-257-4
GR75MT12D 75 33 TO-247-3
GR75MT12J 75 32 TO-263-7
GR75MT12K 75 32 TO-247-4
GR160MT12D 160 16 TO-247-3
GR160MT12J 160 16 TO-263-7
GR160MT12K 160 16 TO-247-4
GR350MT12D 350 8 TO-247-3
GR350MT12J 350 8 TO-263-7
GR350MT12K 350 8 TO-247-4
GR20MT17K 1700 20 122 TO-247-4
G3R20MT17N 20 112 SOT-227
GR45MT17K 45 57 TO-247-4
GR1000MT17D 1000 4,5 TO-247-3
GR1000MT17J 1000 4,5 TO-263-7
GR80MT33J 3300 100 40 TO-263-7
GR1000MT33J 1000 5 TO-263-7
