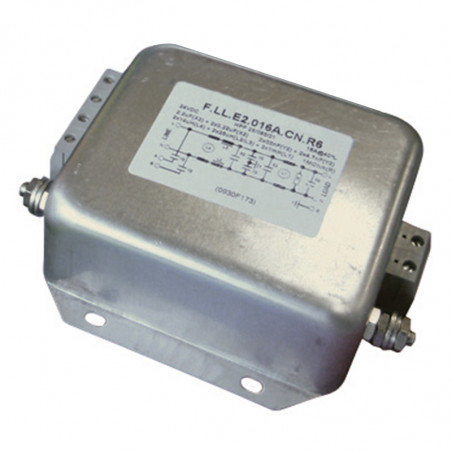

One phase filters - F.LL.E2.***A.SR.W.* series

Electrical data

Nominal voltage (UR): see table 250V 50/60HZ
Nominal current (IN): at ambient temperature 40°C
Leakage current (IL): see table
Voltage test (2s): line - ground 2700 VDC and/or 800 VAC
line - line 1700 VDC
Climatic category: HPF (25/85/21)
Temperature range: -25°C - 85°C

Type VR
[VAC]		 IR
[A]		 IL
[A]		 C
[µF]		 R
[mΩ]		 Neon Hole Terminal Supply cables Dimesions [mm]
A B C D
F.LLE2.001A.SR.W2 250 1 0.002 @ 220V 0,023 800 - M25 Solder* 20 AWG x 450 230 89 63 50
F.LLE2.005A.SR.W2 250 5 0.002 @ 220V 0,023 150 - M25 Solder** 18 AWG x 450 230 89 63 50
F.LL.E2.030A.SR.W2 250 30 0.183 @ 220V 2 6 - M25 M6 12 AWG x 500 305 125 77 50
F.LL.E2.030A.SR.W1 480 30 2.29 @ 277V 20 14 2 1*NPSL M6 10 AWG x 700 510 180 105 57
F.LL.E2.060A.SR.W1 480 60 2.29 @ 277V 20 5,5 2 1*NPSL M8 6 AWG x 700 660 205 106 57
F.LLEU.100A.SR.W1 277 100 4.96 @ 277V 43,2 3,2 1 1*NPSL M10 2 AWG x 700 735 115 115 57

Caution
Solder - terminals for soldering
Other dimensions for client request.

30A SRW1
