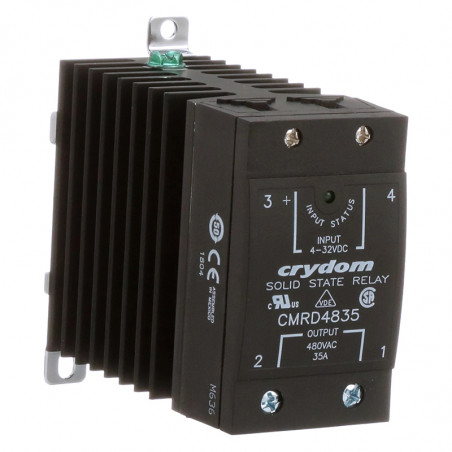

Photos are for informational purposes only. View product specification
![]() |
||
• Insulation voltage
|
4000 V RMS
|
|
• Input/output capacity
|
8 pF
|
|
• Operation temperature range
|
-30°C - 80°C
|
|
• Operation frequency range
|
47 - 63 Hz
|
|
• Switching on method
|
at 0 voltage
|
|
Available options:
|
||
• 10 - immediate turn on
|
||
• E - Control voltage 18-36VAC
|
||
Marking example
|
CMRA 4835 -10
|
|
CMRA 2435 - E
|
||
CMRD 4835 -10
|
Symbol | Symbol | CMRA Series | CMRD Series | CMRA and CMRD Series | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Input data | Input data | Output data | I2t [A2s] | Dimensions | Characteristic | |||||||
Control voltage V RMSAC | Input current [mA] | Control voltage VDC | Input current [mA] | Load current ARMS | Voltage range V RMS | Max voltage Vpeak | Max current Apeak | |||||
CMRA2435 | CMRD2435 | 9 - 140 | 15(120V)RMS | 4-32 | 14 (5V) | 0,15 - 35 | 24 - 280 | 600 | 250 | 260 | rys. 1 | 2 |
CMRA2445 | CMRD2445 | 0,15 - 45 | 24 - 280 | 600 | 625 | 1620 | rys. 1 | 3 | ||||
CMRA2455 | CMRD2455 | 0,25 - 55 | 24 - 280 | 600 | 1000 | 4150 | rys. 1 | 4 | ||||
CMRA2465 | CMRD2465 | 0,25 - 65 | 24 - 280 | 600 | 1200 | 6000 | rys. 1 | 5 | ||||
CMRA4835 | CMRD4835 | 0,15 - 35 | 48 - 530 | 1200 | 250 | 260 | rys. 1 | 2 | ||||
CMRA4845 | CMRD4845 | 0,15 - 45 | 48 - 530 | 1200 | 625 | 1620 | rys. 1 | 3 | ||||
CMRA4855 | CMRD4855 | 0,25 - 55 | 48 - 530 | 1200 | 1000 | 4150 | rys. 1 | 4 | ||||
CMRA4865 | CMRD4865 | 0,25 - 65 | 48 - 530 | 1200 | 1200 | 6000 | rys. 1 | 5 | ||||
CMRA6035 | CMRD6035 | 0,15 - 35 | 48 - 660 | 1200 | 250 | 260 | rys. 1 | 2 | ||||
CMRA6045 | CMRD6045 | 0,15 - 45 | 48 - 660 | 1200 | 625 | 1620 | rys. 1 | 3 | ||||
CMRA6055 | CMRD6055 | 0,25 - 55 | 48 - 660 | 1200 | 1000 | 4150 | rys. 1 | 4 | ||||
CMRA6065 | CMRD6065 | 0,25 - 65 | 48 - 660 | 1200 | 1200 | 6000 | rys. 1 | 5 |
Drawing 1
![]() |
Drawing 2
![]() |
|
Drawing 3
![]() |
Drawing 4
![]() |
Drawing 5
![]() |
