Manufacturer: M-SYSTEM

Recorder PC - 12 insulated inputs - RZMS

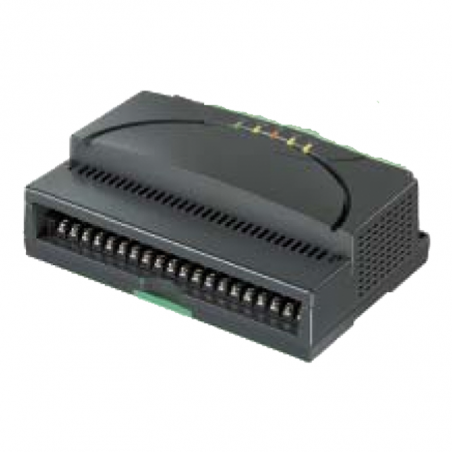

Recorder RZMS-U9

Features

  • 12 channel, programmable inputs;
  • Channel-to-channel isolation;
  • Trigger input and alarm output;
  • Modbus RS-485 and RS-232-C interface;
  • Easy system expansion via Modbus RTU;
  • Filtering protection against 50/60 Hz noise.


Technical data

Power supply
 85..264 VAC, 47..66 Hz, ~5 VA; 24 VDC ±10%, 1,2 W
Operating temperature
 -5..+60 °C
Humidity 30..90%Rh
Mounting powierzchniowy lub na szynę DIN
Dimensions 175 x 128 x 56,5 mm
Weight 520 g
Communication RS-232, RS-485
Isolation pomiędzy wejściami analogowymi, wejściem wyzwalającym,
wejściem konfiguracyjnym, wyjściem alarmowym,
RS-232, RS-485 i zasilaniem
Inputs
Current and voltage DC ±60 mV, ±125 mV, ±250 mV, ±500 mV, ±1 V, ±3 V, ±6 V, ±12 V
Thermocouples K, E, J, T, B, R, S, C, N, U, L, P
Resisitive sensors
 Pt100, Pt200, Pt300, Pt400, Pt500, Pt1000, Ni100, NI120, Ni508.4,
Ni-Fe604, Cu10 @25°C, Pt50, JPt100
Resistances 200Ω, 500Ω, 5kΩ


Product Number


M2: 100..240 VAC
R: 24VDC


Dimensions [mm(inches)]

Rejestrator PC, 12 izolowanych wejść – RZMS-U9 wymiary

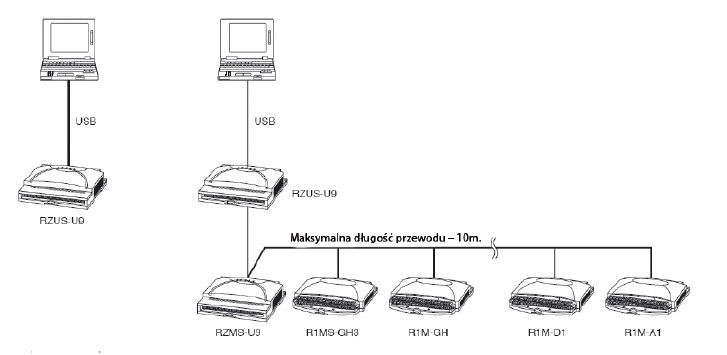

Example configuration

Rejestrator PC, 12 izolowanych wejść – RZMS-U9 przykładowa konfiguracja
