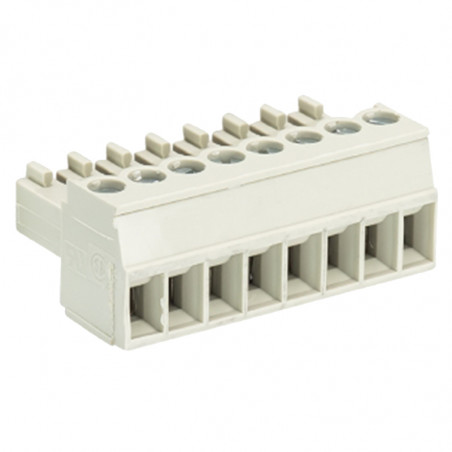

Joints for PCB

PLUGS, SCREW CONNECTIONS, 3.50/3.81 MM RASTER



Technical Data
Nominal wire cross-section:
1.5 mm2
Nominal current: 8A

Cross-section range:
0.14 1.5 mm2 single core
125 V/2.5 kV/3 breakdown voltage category III
250 V/2.5 kV/2 breakdown voltage category II
* 690 V/2.5 kV/1 breakdown voltage category I

* max. 600V for ungrounded connectors or breakdown voltage ≤ 3 kV for L ≥ 2.00 mm and ≤ 2.5 kV for 2.0 mm > L ≥ 1.5 mm
 PLUGS, SCREW CONNECTIONS, 3.50/3.81 MM GRID Type 8513 B/..., 8813 BI... PLUGS, SCREW CONNECTIONS, 3.50/3.81 MM RASTER Type 8513 B/...F, 8813 B/...F

Type 8513 B/..., 8813 BI...

Type 8513 B/...F, 8813 B/...F
Plug-in direction in line with the cable Plug-in direction in line with cable
Rated voltage VDE 0110
UL data
 No. 30-16 AWG 300V 8A No. 30-16 AWG 300V 8A
CSA Data
 No. 22-14 AWG 300V 5A No. 22-14 AWG 300V 5A
Certificates


Pack. pcs GFL G T Fields Catalog number Catalog number Catalog number Catalog number
Raster 3.50 mm
 No description With description No description With description
100 17.40 7.00 3.50 2

25.640.3253.0

25.640.0253.0

25.641.3253.0

25.641.0253.0
100 20.90 10.50 7.00 3

25.640.3353.0

25.640.0353.0

25.641.3353.0

25.641.0353.0
50 24.40 14.00 10.50 4

25.640.3453.0

25.640.0453.0

25.641.3453.0

25.641.0453.0
50 27.90 17.50 14.00 5

25.640.3553.0

25.640.0553.0

25.641.3553.0

25.641.0553.0
50 31.40 21.00 17.50 6

25.640.3653.0

25.640.0653.0

25.641.3653.0

25.641.0653.0
50 34.90 24.50 21.00 7

25.640.3753.0

25.640.0753.0

25.641.3753.0

25.641.0753.0
50 38.40 28.00 24.50 8

25.640.3853.0

25.640.0853.0

25.641.3853.0

25.641.0853.0
50 41.90 31.50 28.00 9

25.640.3953.0

25.640.0953.0

25.641.3953.0

25.641.0953.0
50 45.40 35.00 31.50 10

25.640.4053.0

25.640.1053.0

25.641.4053.0

25.641.1053.0
50 48.90 38.50 35.00 11

25.640.4153.0

25.640.1153.0

25.641.4153.0

25.641.1153.0
50 52.40 42.00 38.50 12

25.640.4253.0

25.640.1253.0

25.641.4253.0

25.641.1253.0
50 55.90 45.50 42.00 13

25.640.4353.0

25.640.1353.0

25.641.4353.0

25.641.1353.0
50 59.40 49.00 45.50 14

25.640.4453.0

25.640.1453.0

25.641.4453.0

25.641.1453.0
50 62.90 52.50 49.00 15

25.640.4553.0

25.640.1553.0

25.641.4553.0

25.641.1553.0
50 66.40 56.00 52.50 16

25.640.4653.0

25.640.1653.0

25.641.4653.0

25.641.1653.0
Raster 3.81 mm
 No description With description No description With description
100 18.01 8.41 3.81 2

25.620.3253.0

25.620.0253.0

25.621.3253.0

25.621.0253.0
100 21.82 12.22 7.62 3

25.620.3353.0

25.620.0353.0

25.621.3353.0

25.621.0353.0
50 25.63 16.03 11.43 4

25.620.3453.0

25.620.0453.0

25.621.3453.0

25.621.0453.0
50 29.44 19.84 15.24 5

25.620.3553.0

25.620.0553.0

25.621.3553.0

25.621.0553.0
50 33.25 23.65 19.05 6

25.620.3653.0

25.620.0653.0

25.621.3653.0

25.621.0653.0
50 37.06 27.46 22.86 7

25.620.3753.0

25.620.0753.0

25.621.3753.0

25.621.0753.0
50 40.87 31.27 26.67 8

25.620.3853.0

25.620.0853.0

25.621.3853.0

25.621.0853.0
50 44.68 35.08 30.48 9

25.620.3953.0

25.620.0953.0

25.621.3953.0

25.621.0953.0
50 48.49 38.89 34.29 10

25.620.4053.0

25.620.1053.0

25.621.4053.0

25.621.1053.0
50 52.30 42.70 38.10 11

25.620.4153.0

25.620.1153.0

25.621.4153.0

25.621.1153.0
50 56.11 46.51 41.91 12

25.620.4253.0

25.620.1253.0

25.621.4253.0

25.621.1253.0
50 59.92 50.32 45.72 13

25.620.4353.0

25.620.1353.0

25.621.4353.0

25.621.1353.0
50 63.73 54.13 49.53 14

25.620.4453.0

25.620.1453.0

25.621.4453.0

25.621.1453.0
50 67.54 57.94 53.34 15

25.620.4553.0

25.620.1553.0

25.621.4553.0

25.621.1553.0
50 71.35 61.75 57.15 16

25.620.4653.0

25.620.1653.0

25.621.4653.0

25.621.1653.0


PLUGS, SPRING CONNECTIONS, RASTER 3.50 MM



Technical Data
Nominal conductor cross-section:
1.5 mm2

Nominal current: 8A


Cross-section range:
0.14 1.5 mm2 single core

125 V/2.5 kV/3 breakdown voltage category III
250 V/2.5 kV/2 breakdown voltage category II
* 690 V/2.5 kV/1 breakdown voltage category I

* max. 600V for ungrounded connections or breakdown voltage
≤ 3 kV for L ≥ 2.00 mm and ≤ 2.5 kV for 2.0 mm > L ≥ 1.5 mm

 PLUGS, SPRING CONNECTIONS, 3.50 MM GRID Type 8513 BFK PLUGS, SPRING CONNECTIONS, RASTER 3.50 MM Type 8513 SUFK
VDE0110 No. 30-16 AWG 300V 8A No. 30-16 AWG 300V 8A
UL Data No. 22 -14 AWG 300V 5A No. 22-14 AWG 300V 5A
CSA Data
Certificates


Pack
pcs

 G T Fields Catalog number Catalog number Catalog number Catalog number
Raster 3.50 mm Type 8513 BFK No description With description No description With description
100 6.90 3.50 2

25.630.3253.0

25.630.0253.0
100 10.40 7.00 3

25.630.3353.0

25.630.0353.0
50 13.90 10.50 4

25.630.3453.0

25.630.0453.0
50 17.40 14.00 5

25.630.3553.0

25.630.0553.0
50 20.90 17.50 6

25.630.3653.0

25.630.0653.0
50 24.40 21.00 7

25.630.3753.0

25.630.0753.0
50 27.90 24.50 8

25.630.3853.0

25.630.0853.0
50 31.40 28.00 9

25.630.3953.0

25.630.0953.0
50 34.90 31.50 10

25.630.4053.0

25.630.1053.0
50 38.40 35.00 11

25.630.4153.0

25.630.1153.0
50 41.90 38.50 12

25.630.4253.0

25.630.1253.0
50 45.40 42.00 13

25.630.4353.0

25.630.1353.0
50 48.90 45.50 14

25.630.4453.0

25.630.1453.0
50 52.40 49.00 15

25.630.4553.0

25.630.1553.0
50 55.90 52.50 16

25.630.4653.0

25.630.1653.0
Raster 3.50 mm Type 8513 SUFK No description With description
100 8.40 3.50 2

25.642.3253.0

25.642.0253.0
100 11.90 7.00 3

25.642.3353.0

25.642.0353.0
50 15.40 10.50 4

25.642.3453.0

25.642.0453.0
50 18.90 14.00 5

25.642.3553.0

25.642.0553.0
50 22.40 Less
