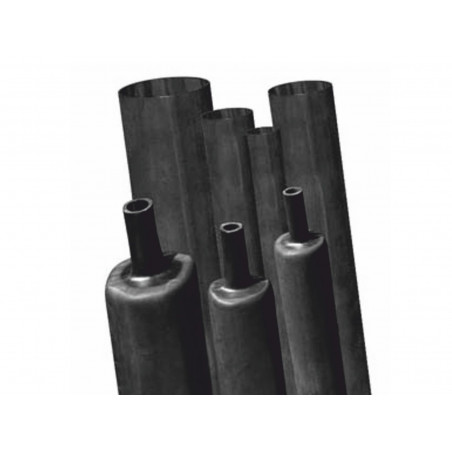

Polyolefin heat shrink tubes - type RC3S i RC4S
  • Polyolefin heat shrink tubes - type RC3S i RC4S

Photos are for informational purposes only. View product specification

Polyolefin heat shrink tubes - type RC3S i RC4S

Rury termokurczliwe poliolefinowe, bardzo elastyczne, samogasnące, skurcz 3:1 i 4:1



Application:

RC3S: wide application in the performance of electrical insulation, connecting cable bundles and marking to protect against corrosion and to provide mechanical shield. Shrink ratio 3:1 is more suitable for applications in irregular shapes.



RC4S: widely used in the military, airkraft and electronics industry. Also applied to insulate and repair of wire, cable and line bundles.
Pipes are manufactured using a special utility and technology formula . It is easy to slide on a large diameter and after shrink down on a small diameter of connector or transition

Technical data

  • Operating temperature: -55 up to +135°C
  • Shrink ratio: 3:1, 4:1
  • The minimum shrink temperature: +70°C
  • Standard colours: black
  • Tubes self-extinguishing (except of a colorless)

ProductDimensions
[ mm]
Standard length of the spool
Tube typeDds

RCS3 1,6 / 0,5

1,6 0,5 0,45 200

RCS3 3,2 / 1

3,2 1 0,55 200

RCS3 4,8 / 1,5

4,8 1,5 0,60 100

RCS3 6,4 / 2

6,4 2 0,65 100

RCS3 9,5 / 3

9,5 3 0,75 100

RCS3 12,7 / 4

12,7 4 0,80 50

RCS3 19,1 / 6

19,1 6 0,90 50

RCS3 25,4 / 8

25,4 8 1,00 50

RCS3 39 / 13

39 13 1,25 50



ProductDimensions
[ mm]
Packing [pcs.]
Cut in lengths [m]
Tube typeDds

RCS4 19,1 / 4,6

19,1 4,6 1,7 50 1,22

RCS4 25,4 / 7

25,4 7,0 1,7 50 1,22

RCS4 38,1 / 9,5

38,1 9,5 1,7 50 1,22

RCS4 50,8 / 14

50,8 14 1,7 20 1,22

Rury termokurczliwe dużych średnic samogasnące WYMIARY

D - minimum internal diameter before recovery
d - maximum internal diameter before recovery
s - wall thckncess after entire recovery



PropertiesTest methodTubes RC3S / RC4S
Tensile strength ASTM D 2671 14 MPa
Elongation at rupture ASTM D 2671 800%
Tensile strength after heat ageing (+175°C, 168 h) ASTM D 2671 14 MPa
Elongation at rupture after heat ageing (+175°C, 168 h) ASTM D 2671 350%
Attempt of flammability UL 224 VW1, SAE-AMS-DTL-23053/5 positive
Heat shock (+250°C, 4 h) ASTM D 2671 no breaking
Cold bend test (-55°C, 4 h) ASTM D 2671 no breaking
Dielectric resistance ASTM D 150 20kV/mm
Volume resistivity ASTM D 876 1014Ωm
Cu corrosion UL 224 doesn't corrode
Water absorptivity ASTM D 570 0,15%
Chemical resistance SAE-AMS-DTL-23053/5 positive
Length change after shrinking UL 224 0 ±5
