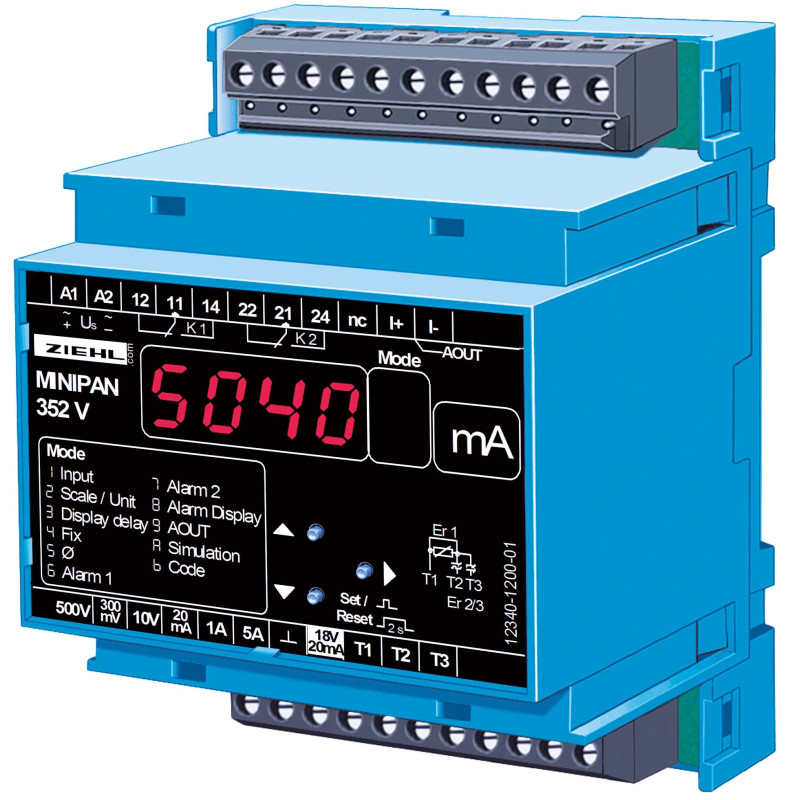

MINIPAN352V-ANALOG - Universal Instrument - D340110

The Universal-Instrument MINIPAN 352V is a versatile instrument for industrial applications. It is particularly likely by its nature limit value and control functions, which are realized by two programmable switching points. These allow it to beused as a limit relay or as a 2- or 3-point controller. The innovative EasyLimit function considerably simplifies the setting of limit values ​​and at the same time protects other parameters from unintentional changes.

The device has a wide range of measurement inputs, including AC measurements with true RMS measurement, which makes it particularly suitable for precise AC measurements. Both AC and DC current and voltage, resistances and temperatures can be measured with various sensors. The 4-digit LED display with 14 mm high digits is freely scalable from -1999 to +9999, allowing the measured values ​​to be displayed individually.

In addition, the MINIPAN 352V offers an optional analog output (4-20 mA), which makes it suitable for use as a measuring transducer. The universal supply voltage of AC/DC 24-240 V increases flexibility in use. With its compact design and simple programming via three buttons, the device is ideal for a wide range of measurement tasks in industry.

Application: MINIPAN352V are often installed in heating, ventilation and air conditioning systems, where they provide a simple and effective way of keeping temperatures within a certain range.
