Manufacturer: ZIEHL

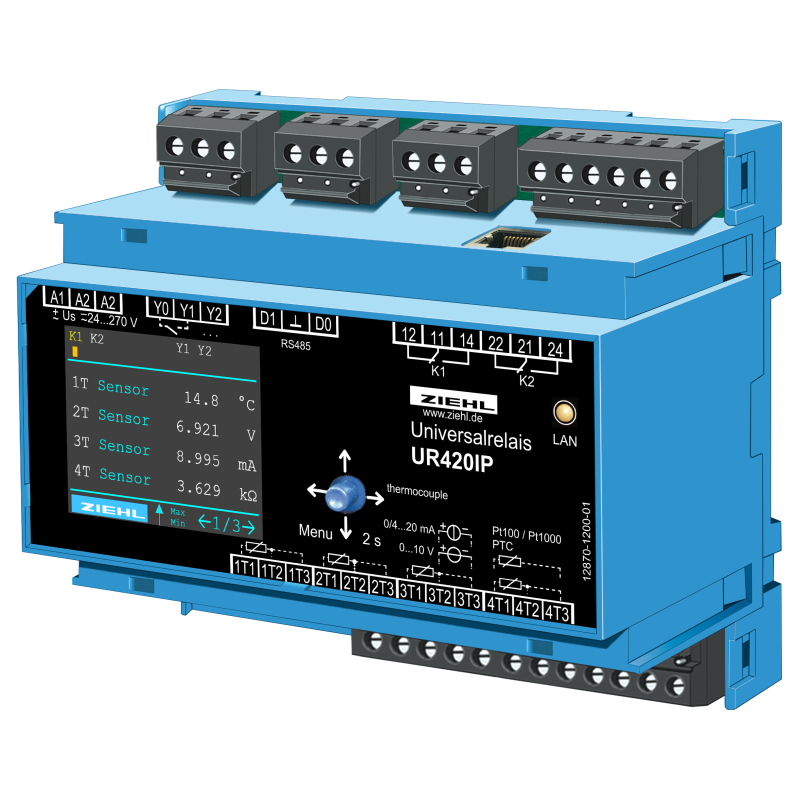

UR420IP - Universal Relay - T224354

  • T224354
  • Product Type IP54 motor, IP20 electronics
  • Supply voltage AC/DC 24 - 270 V
  • Execution Customer specific / IP 6K9K
  • Additional information PP plastic
  • Certificate IP 30 (IP 44, with bracket and cover)
  • Output function 2 outputs, Analog outputs 0/4-20 mA, 0-10 V, Outputs/Relays, Ethernet TCP/IP, Interface/Bus
  • Measured value PP plastic, white

Web-IO universal limit value relay with Ethernet interface, built-in web server and 4 inputs for temperature sensors or other analog signals. The UR420IP can be connected to the internet or an intranet and operated via TCP/IP from a normal PC with a suitable browser.
The device can simultaneously evaluate and monitor up to 4 different input signals. Each of the 2 output relays can be assigned up to 4 limit values, one per input. If a limit value is reached, an alarm is triggered and a relay switches. Example: Alarm 1 is activated when a temperature is exceeded at sensor input 3 (e.g. Pt 100) or the signal from a pressure transmitter (e.g. 4-20 mA) at input 5 falls below a limit value. The device also has an RS485 interface (Modbus RTU).

Accessory: Installation frame ER6 for panel mount



Applications

The UR420IP is used where one or more of the following features a required:

  • monitor up to 4 different analogue measured values ​​and transfer them to the Internet
  • Measured value query and remote maintenance via intranet/internet
