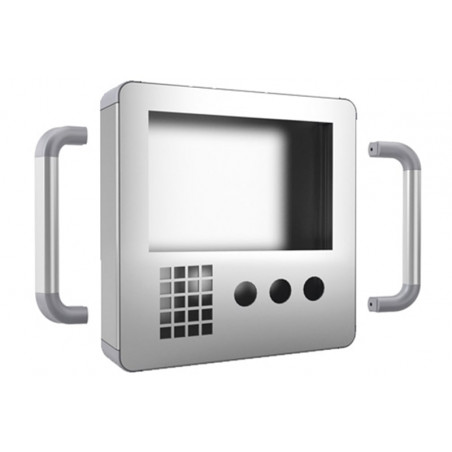

ProfiPanel Standard - Standard Dimension Control Panel

ATTRACTIVE DESIGN CONTROL HOUSING IN STANDARD SIZES.
An economical version of the HMI/control housing with a depth of 90 mm. For all customers who prioritize fast delivery, require small batches, or for whom every millimeter counts: the "profiPANEL Standard" solution. Four standard sizes of the 90 mm base profile with a custom-machined front panel, on which any panel PC and additional buttons or switches can be mounted. The rear wall (on the long side of the housing) is equipped with locks and hinges. profiPANEL Standard – fast delivery and an affordable price. At a glance at the advantages of »profiPANEL Standard:
- Four economical standard sizes, suitable for panel PCs up to 21 inches
- Economical alternative thanks to standardization
- Shortened delivery times thanks to components in stock
- Front panel machining according to customer requirements
- Ideal also for small orders
- Protection class IP 65
4 simple steps to a perfectly fitting, economical control enclosure:
1 Select the enclosure size based on the planned fixed components.
2 Determine the preferred front panel machining.
3 Determine the mounting position of the support arm.
4 Optional selection of bracket(s). Available options: on the side or only at the bottom

Type	Length D	Width W	Height W
331.090.AAA	400	400	90
331.090.BBB	520	400	90
331.090.CCC	520	520	90
331.090.DDD	600	520	90
