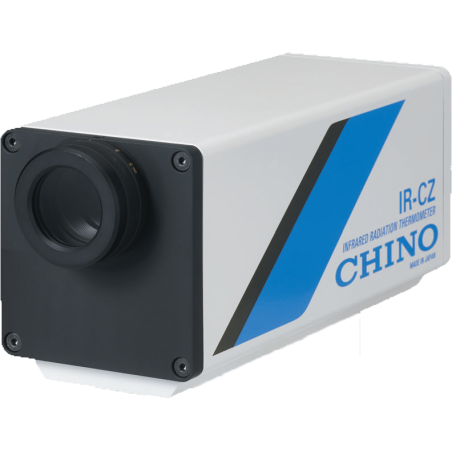

IR-CZ Series Stationary Pyrometer

IR-CZ Series Stationary Pyrometer

The Japanese IR-CZ series pyrometer is a stationary device for remote measurement of the temperature of a surface under observation. It is characterized by high accuracy and long-term measurement stability. In this series, the resolution for low temperatures has also been improved. The device is equipped with a temperature display and an analog output for the measured value. Optionally, it can be equipped with an analog input for remote emissivity adjustment and a laser target to facilitate user alignment.

Depending on the model, users can choose from various measurement ranges:

Symbol Measurement Range
IR-CZP2N 150～1400℃
IR-CZI2N 300～1600℃
IR-CZS2N 600～3000℃
IR-CZH7N 900～3500℃
IR-CZQ2N 400～2000℃

Technical Specifications:

Model IR-CZP IR-CZI IR_CZS
Detector InGaAs InGaAs Si
Wavelength 2µm 1.55µm 0.9µm
Temperature Measurement Range 80..1000°C (50)
150..1400°C (200)
200..1400°C (300)		 200..1000°C (50)
300..1600°C (200,300)
400..2000°C (200,300)		 450..2000°C (50)
600..3000°C (200,300)
700..3500°C (200,300)
Accuracy Below 500°C: ±3°C
500 to 1000°C: ±5°C
Above 1000°C: ±0.5% of measured value		 Below 1000°C: ±5°C
1000 to 1500°C: ±0.5% of measured value
Above 1500°C: ±0.6% of measured value		 Below 1000°C: ±5°C
1000 to 1500°C: ±0.5% of measured value
1500 to 2000°C: ±0.6% of measured value
Above 2500°C: ±1% of measured value
Repeatability 0.2°C 0.2°C 0.2°C
Resolution 0.5°C 0.5°C 0.5°C
Response Time 3 ms 3 ms 3 ms
Factor 50, 200, 300 50, 200, 300 50, 200, 300
Target Optical or laser (optional) Optical or laser (optional) Optical or laser (optional)
Lens Diameter Ø20 mm Ø10 mm or Ø20 mm Ø10 mm or Ø20 mm
Operating Temperature 0..50°C -10..60°C -10..60°C
Power Consumption Max. 3.3VA Max. 3.3VA Max. 3.3VA
