Manufacturer: Ebmpapst

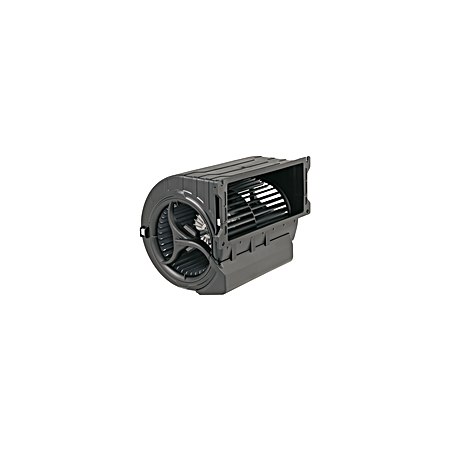

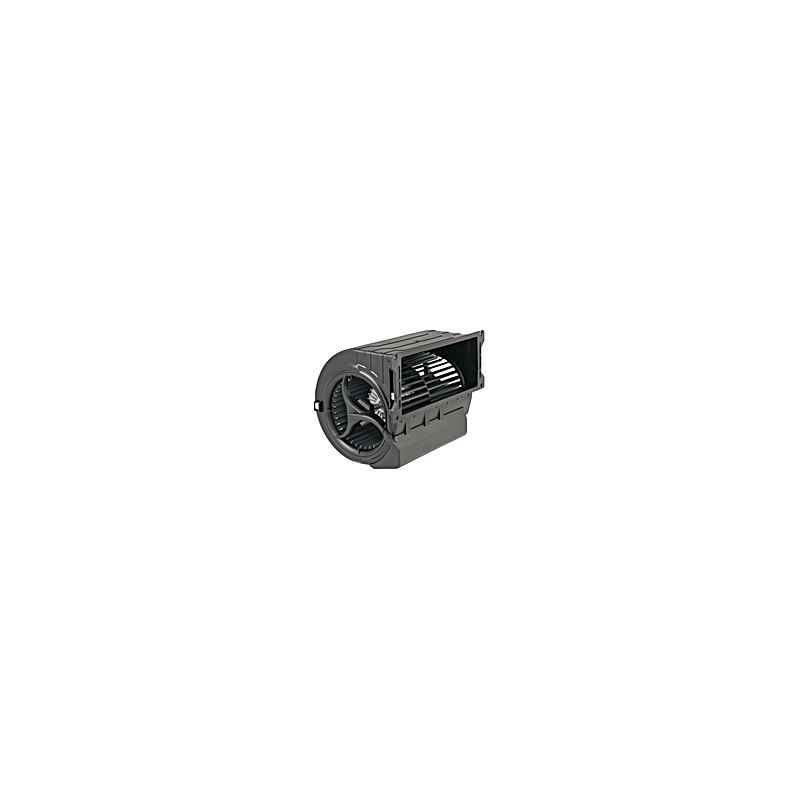

D3G146-LV13-30 EC radial fan 230V 167W

  • D3G146LV1330
  • Housing material Plastik PP
  • Protection rating IP00 motor, IP20 electronics
  • Frequency 50/60
  • Input power 167
  • Phase 1~
  • Nominal voltage 230
  • Speed 1550
  • Current draw 1.3
  • Min. ambient temperature -25
  • Max. ambient temperature 60
  • Certificate EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1
  • Size 146 mm
  • Fan type EC double inlet centrifugal blower with spiral housing
  • Voltage range 200 ... 240
  • Rotor material Steel sheet, galvanized
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 55
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H0 - dry environment
  • Motor bearing Ball bearing
  • Rotor surface Galvanized
  • Electronics housing material PP plastic
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure
  • Weight 2,755 kg
  • Compliance with standards EN 60335-1 / CE / UKCA
