Manufacturer: Ebmpapst

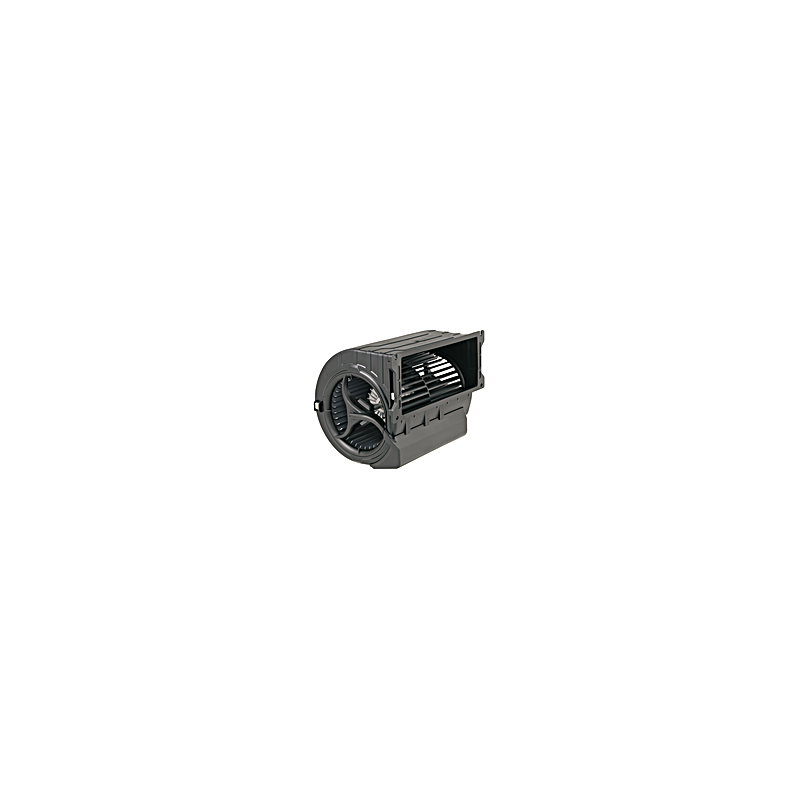

D3G200-HD02-02 EC radial fan 230V 750W

  • D3G200HD0202
  • Housing material Steel sheet, galvanized
  • Protection rating IP54
  • Frequency 50/60
  • Input power 750
  • Phase 1~
  • Nominal voltage 230
  • Speed 1570
  • Current draw 3.3
  • Max. ambient temperature 60
  • Certificate VDE
  • Size 200 mm
  • Fan type EC double inlet centrifugal blower with spiral housing
  • Voltage range 200 ... 277
  • Rotor material Steel sheet, galvanized
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 85
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure
  • Weight 11,64 kg
  • Compliance with standards EN 60335-1; EN 61800-5-1 / CE / UKCA
