Manufacturer: Ebmpapst

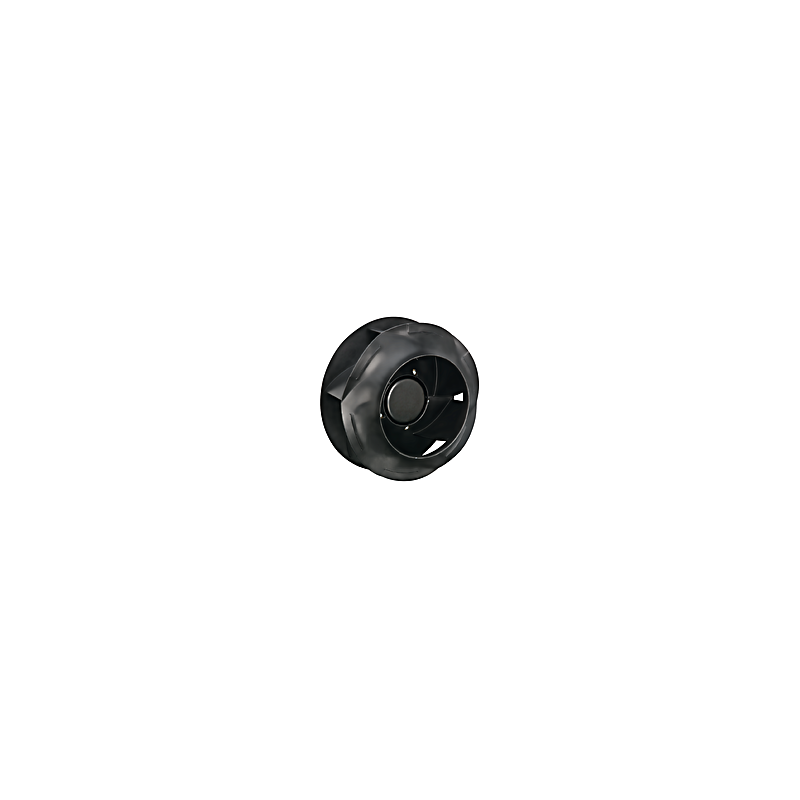

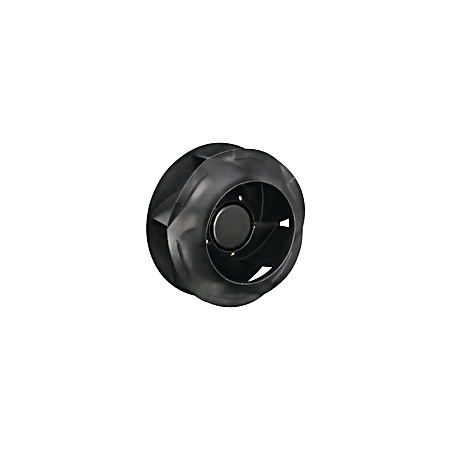

G2D140-AC38-03 AC centrifugal fan 400/400/400/400/480/480V 145/80/190/90/225/120W

  • G2D140AC3803
  • Connection D / Y / D / Y / D / Y
  • Housing material Die-cast aluminum
  • Protection rating IP44 / depending on mounting and position as per EN 60034-5
  • Frequency 50 / 50 / 60 / 60 / 60 / 60
  • Input power 145 / 80 / 190 / 90 / 225 / 120
  • Phase 3~ / 3~ / 3~ / 3~ / 3~ / 3~
  • Nominal voltage 400 / 400 / 400 / 400 / 480 / 480
  • Speed 2300 / 1600 / 2350 / 1500 / 2650 / 1750
  • Current draw 0.22 / 0.13 / 0.29 / 0.14 / 0.29 / 0.15
  • Certificate EAC
  • Size 140 mm
  • Fan type AC single inlet centrifugal blower with volute housing
  • Rotor material Steel sheet, galvanized
  • Type of voltage AC / AC / AC / AC / AC / AC
  • Motor protection Automatic reset thermal cutout, lead-out, with basic insulation
  • Motor size 68
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1+
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE / CE / CE / CE / CE / CE
  • Weight 3,5 kg
  • Compliance with standards EN 45545-2 + A1
