Manufacturer: Ebmpapst

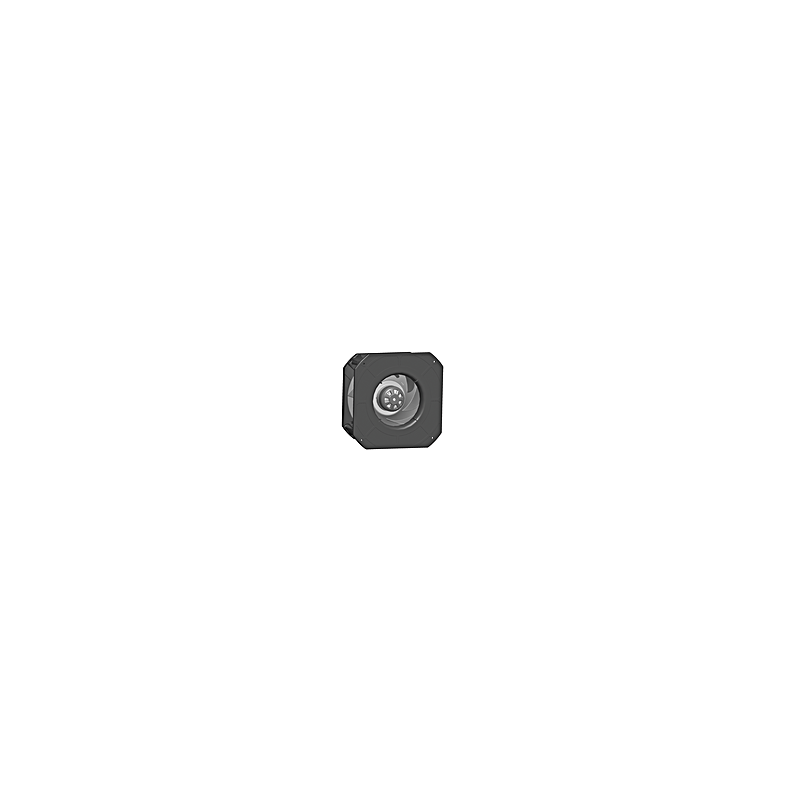

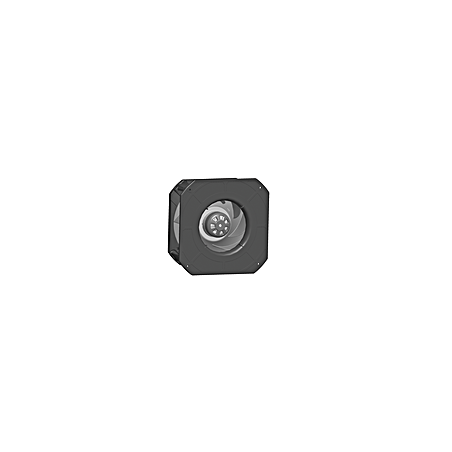

K3G400-RP45-20 EC radial fan 230V 340W

  • K3G400RP4520
  • Protection rating IP20
  • Frequency 50/60
  • Input power 340
  • Phase 1~
  • Nominal voltage 230
  • Speed 1250
  • Current draw 1.7
  • Min. ambient temperature -25
  • Max. ambient temperature 40
  • Certificate CSA C22.2 No. 113 / EAC / UL 507
  • Size 400 mm
  • Fan type EC single-inlet centrifugal fan with mounting panel
  • Voltage range 200 ... 277
  • Rotor material PP UL plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H0 - dry environment
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 10,44 kg
  • Compliance with standards EN 61800-5-1 / CE
