Manufacturer: Ebmpapst

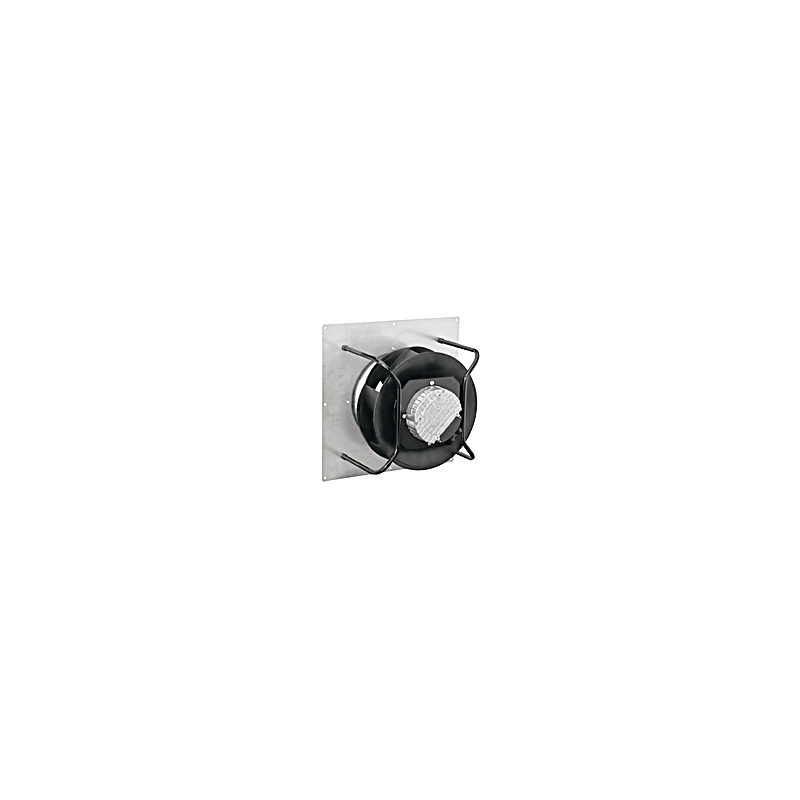

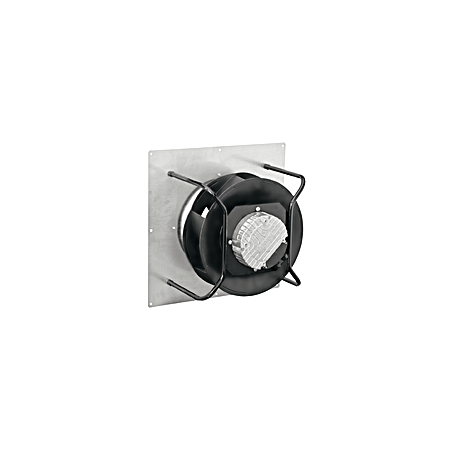

K3G500-AP28-K1 EC radial fan 400V 3000W

  • K3G500AP28K1
  • Housing material Black painted steel sheet
  • Protection rating IP54
  • Frequency 50/60
  • Input power 3000
  • Phase 3~
  • Nominal voltage 400
  • Speed 1780
  • Current draw 4.6
  • Max. ambient temperature 55
  • Certificate EAC
  • Size 500 mm
  • Fan type EC single-inlet centrifugal fan with mounting panel
  • Voltage range 380 ... 480
  • Rotor material Aluminum sheet
  • Type of voltage AC
  • Motor protection Reverse polarity and locked rotor protection
  • Motor size 150
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing / (sealed)
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Min. back pressure 200
  • Weight 55,7 kg
  • Compliance with standards EN 60335-1; EN 61800-5-1 / UKCA / CE
