Manufacturer: Ebmpapst

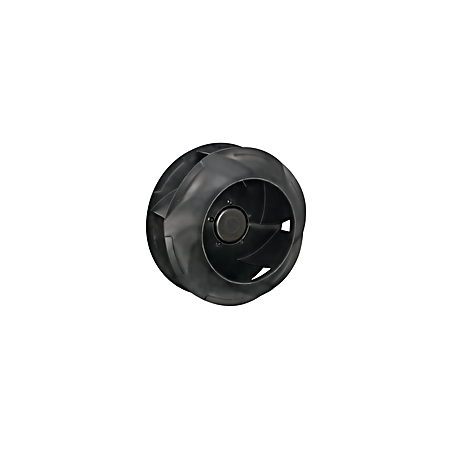

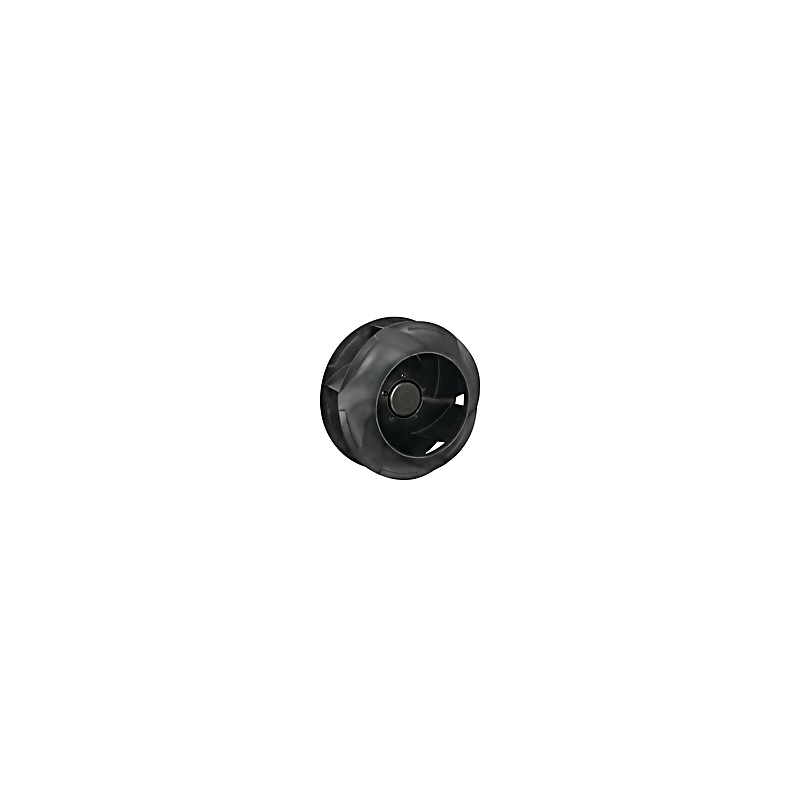

R3G355-RB03-03 EC radial fan 230V 168W

  • R3G355RB0303
  • Protection rating IP54
  • Frequency 50/60
  • Input power 168
  • Phase 1~
  • Nominal voltage 230
  • Speed 1250
  • Current draw 1.4
  • Min. ambient temperature -25
  • Max. ambient temperature 60
  • Certificate CCC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1 / EAC
  • Size 355 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 200 ... 240
  • Rotor material PP plastic
  • Type of voltage AC
  • Motor protection Electronic engine protection
  • Motor size 74
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Thick-layer passivated
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 3,68 kg
  • Compliance with standards UKCA / CE
