Manufacturer: Ebmpapst

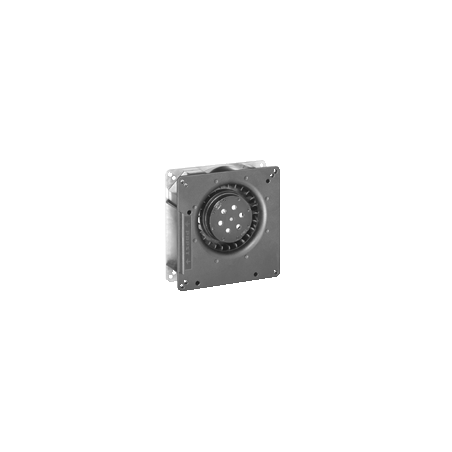

RG 90-18/56 AC radial fan 230V 22W

  • RG901856
  • Air flow direction radial, discharge through the window in the housing
  • Dimensions 135 x 135 x 38 mm
  • Housing material Spiral housing made of PBT reinforced with glass fiber, housing base made of sheet steel
  • Frequency 50
  • Input power 22
  • Phase 1~
  • Nominal voltage 230
  • Speed 2200
  • Min. ambient temperature -30
  • Max. ambient temperature 60
  • Air flow 54
  • Fan type AC single inlet centrifugal fan with mounting panel
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage AC
  • Weight 0,56 kg
