Semiconductor DC relays for DIN bus
  • Semiconductor DC relays for DIN bus

Photos are for informational purposes only. View product specification

Manufacturer: Crydom

Semiconductor DC relays for DIN bus

technical data
Nominal current 10 - 30A @ 60VDC
Compact width 22,5mm
Low leakage current


SymbolInput dataOutput dataTest current[A] (T=10ms)
Control voltage
V DC
Input current  [mA]Load current
[A]
Control voltage
V DC

T

turn on

T

turn off

CKM0610 4,0-32 9 mA (5 VDC)
11 mA (32 VDC)
10 0 - 60 1 ms 1 ms 30
CKM0620 4,0-32 9 mA (5 VDC)
11 mA (32 VDC)
20 0 - 60 1 ms 1 ms 60
CKM0630 4,0-32 9 mA (5 VDC)
11 mA (32 VDC)
30 0 - 60 1 ms 1 ms 90

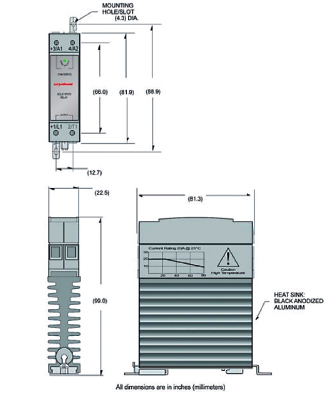

Dimensions
